48 Cards
5
Align the PS/2 serial-port adapter bracket in the slot and press down firmly.
Ensure that the adapter is fully seated in the slot.
6
Before you close the card retention mechanism, ensure that:
• The tops of all cards and filler brackets are flush with the alignment
guide.
• The notch in the top of the card or filler bracket fits around the
alignment guide.
7
Secure the card(s) by closing the card retention latch and snapping it into
place.
CAUTION: Do not route card cables over the cards. Cables routed over the cards
can prevent the computer cover from closing properly or cause damage to the
equipment.

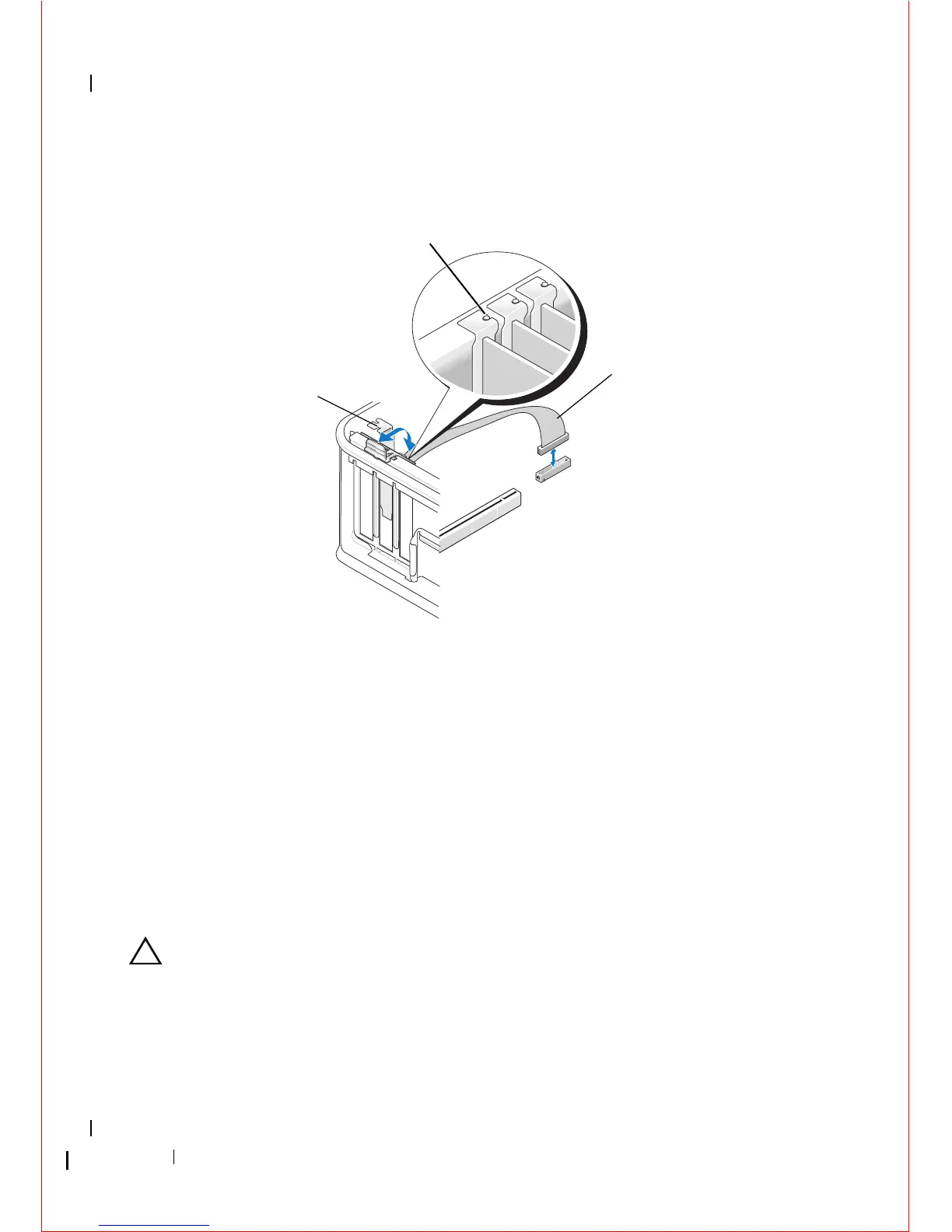

1 card retention latch 2 alignment guide
3 PS/2 serial adapter cable
