Disassembly and reassembly
Back cover
Removing Back Cover
1 Follow the procedure in Before working inside your computer.

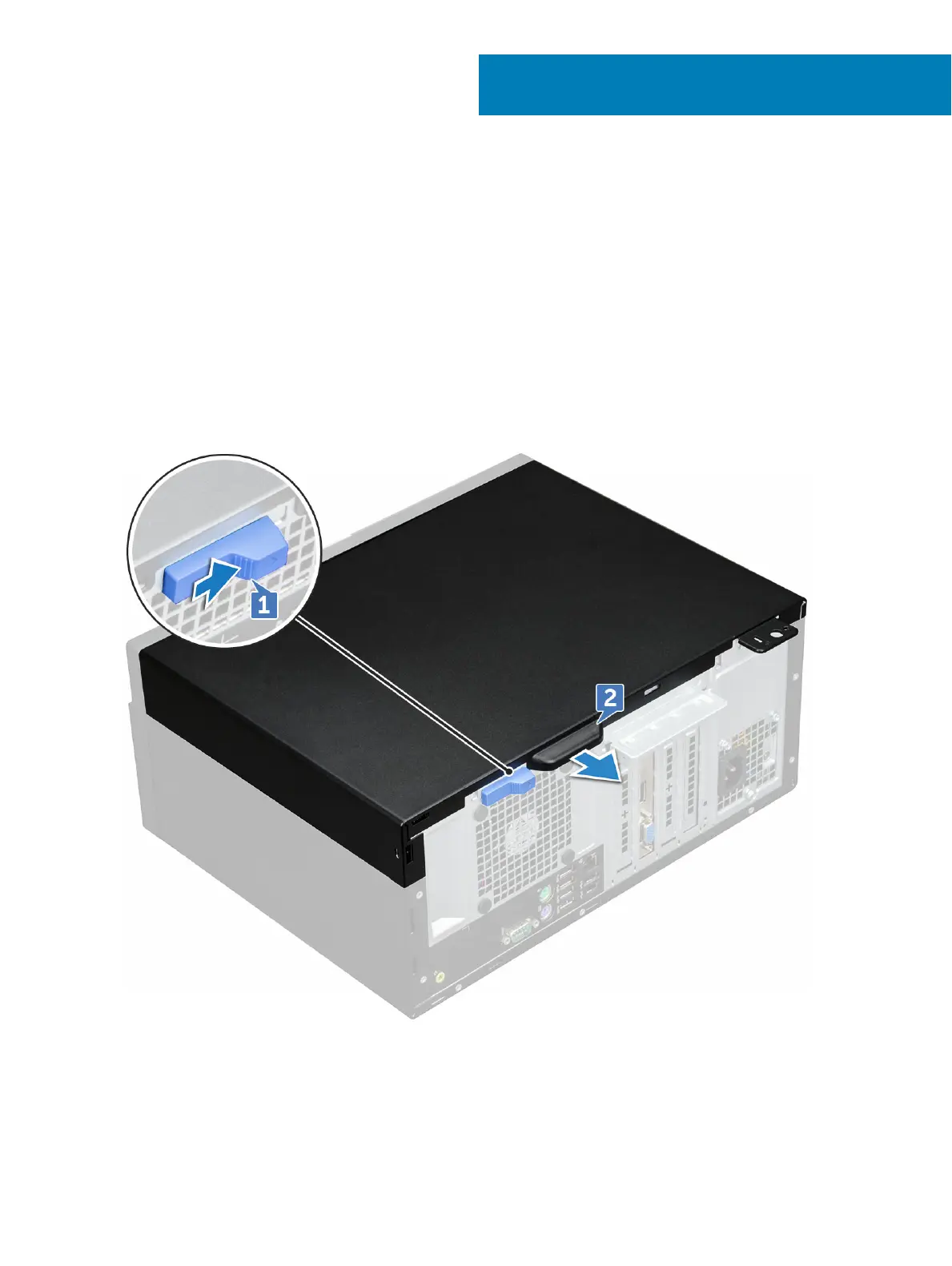

2 To release back cover:
a Slide the latch (blue tab) to release the back cover from the computer [1].
b Slide the back cover toward the back of the computer [2].
3 Lift the back cover to remove it from the computer.
3
