Heat sink assembly
Removing heat sink assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Back cover
b Front bezel
3 Open the Front panel door.

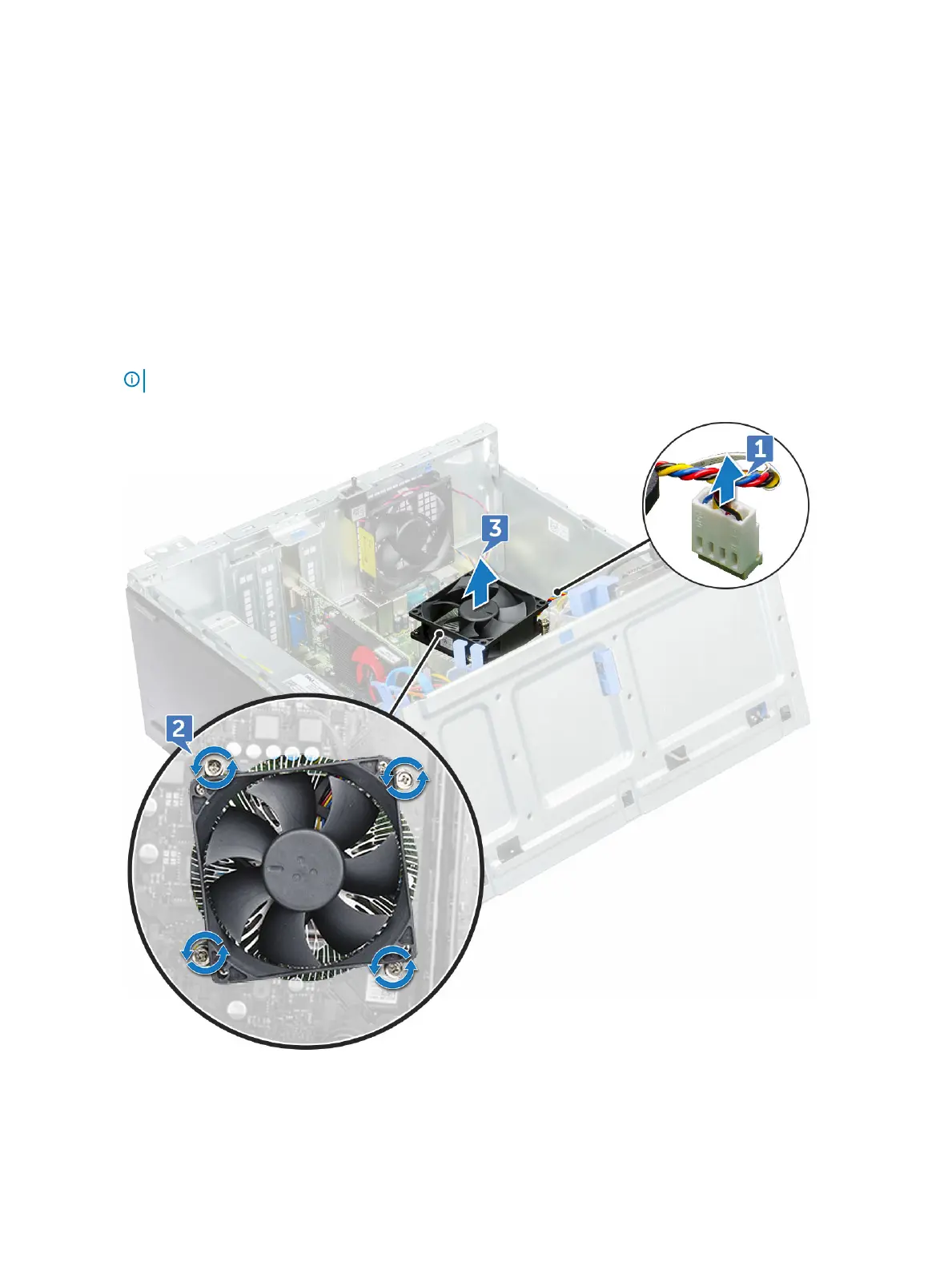

4 To remove the heat sink assembly:
a Disconnect the heat sink assembly cable from the connector on the system board [1].
b Loosen the captive screws(6+/-1) that secure the heat sink assembly to the system board [2].
NOTE: Loosen the screws based on the numbers available on the system board.
c Lift the heat sink assembly away from the computer [3].
36 Disassembly and reassembly
