5 Install the:
a Front bezel
b Back cover
6 Follow the procedure in After working inside your computer.
Power switch
Removing power switch
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Back cover
b Front bezel
3 Open the Front panel door.

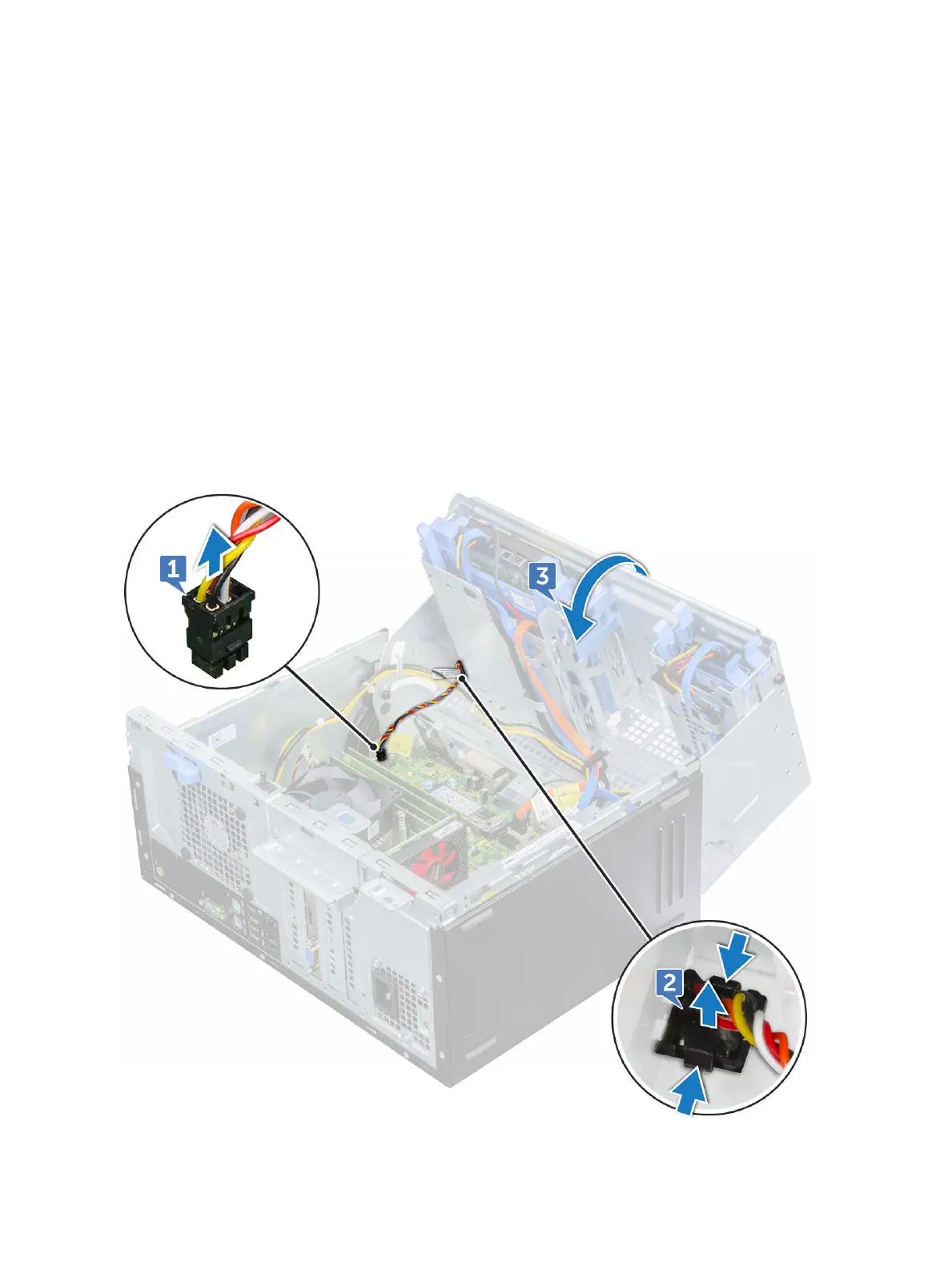

4 To release the power switch:
a Disconnect the power switch cable from the system board [1].
b By using plastic scribe remove the power switch cable through the retention clip [2].
c Press the release tabs using a plastic scribe and slide the power switch out from the front of the computer [3].
d Close the front panel door [4].
5 Pull the power switch out from the computer.
Disassembly and reassembly
31
