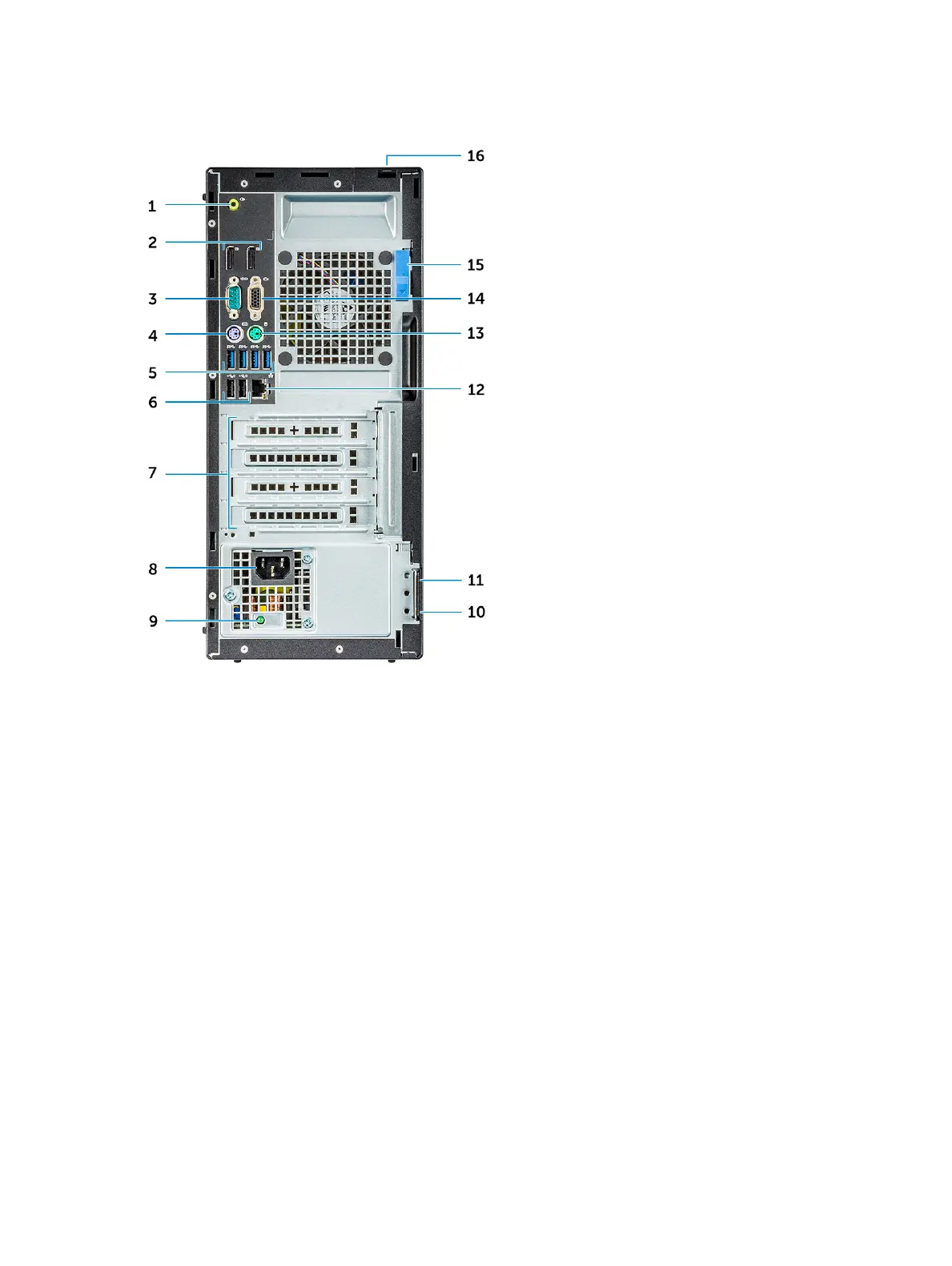

Back chassis view
1 Line-out port 2 DisplayPort
3 Serial port 4 PS/2 keyboard port
5 USB 3.1 Gen1 port 6 USB 2.0 ports (supports Smart Power On)
7 Expansion card slots 8 Power connector port
9 Power supply diagnostic light 10 Padlock ring
11 Kensington security cable slot 12 Network port
13 PS/2 mouse port 14 VGA connector port (optional)
15 Release latch 16 Cable cover lock slot
Chassis 9
