a. cover
3. To remove the coin cell battery:

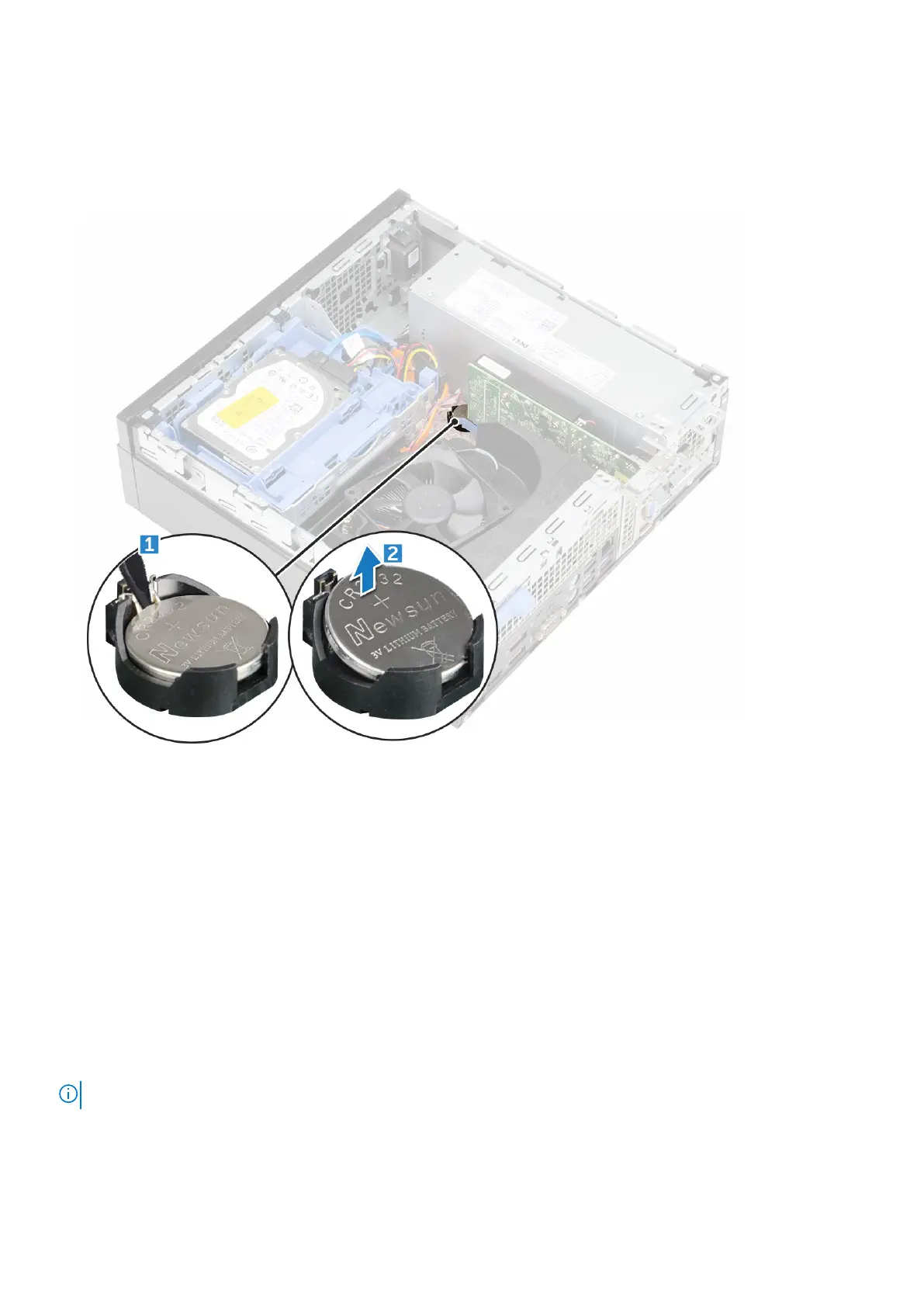

a. Press the release latch until the coin cell battery pops out [1].
b. Remove the coin cell battery from the connector on the system board [2].
Installing the coin cell battery
1. Hold the coin cell battery with the "+" sign facing up and slide it under the securing tabs at the positive side of the
connector.
2. Press the battery into the connector until it locks into place.
3. Install the:
a. cover
4. Follow the procedure in After working inside your computer.
Bezel
Removing bezel
NOTE: Depending on the configuration you order, you may see either of the heat sinks as shown in the image below.
Disassembly and reassembly 13
