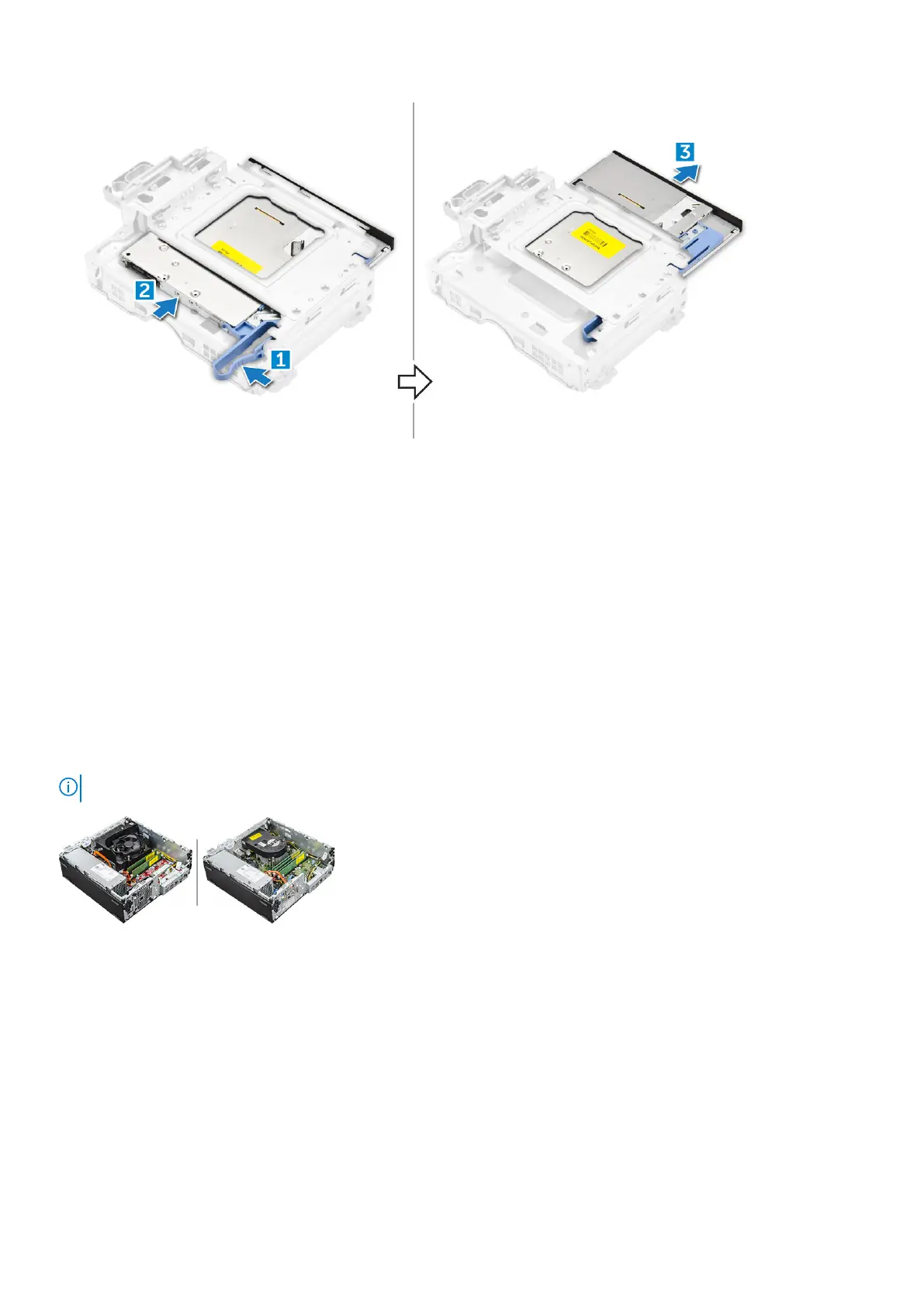

Installing the optical drive
1. Slide the optical drive into the optical drive module.
2. Install the:
a. 2.5–inch drive assembly
b. bezel
c. cover
3. Follow the procedure in After working inside your computer.
M.2 PCIe SSD
Removing the M.2 PCIe SSD
NOTE: Depending on the configuration you order, you may see either of the heat sinks as shown in the image below.
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. cover
b. bezel
c. 2.5–inch drive assembly
d. optical drive
3. To remove the M.2 PCIe SSD:
a. Pull the blue tab to release the M.2 PCIe SSD .
b. Disconnect the M.2 PCIe SSD from the SSD connector.
Disassembly and reassembly
21
