b. bezel
c. 2.5–inch drive assembly
d. optical drive

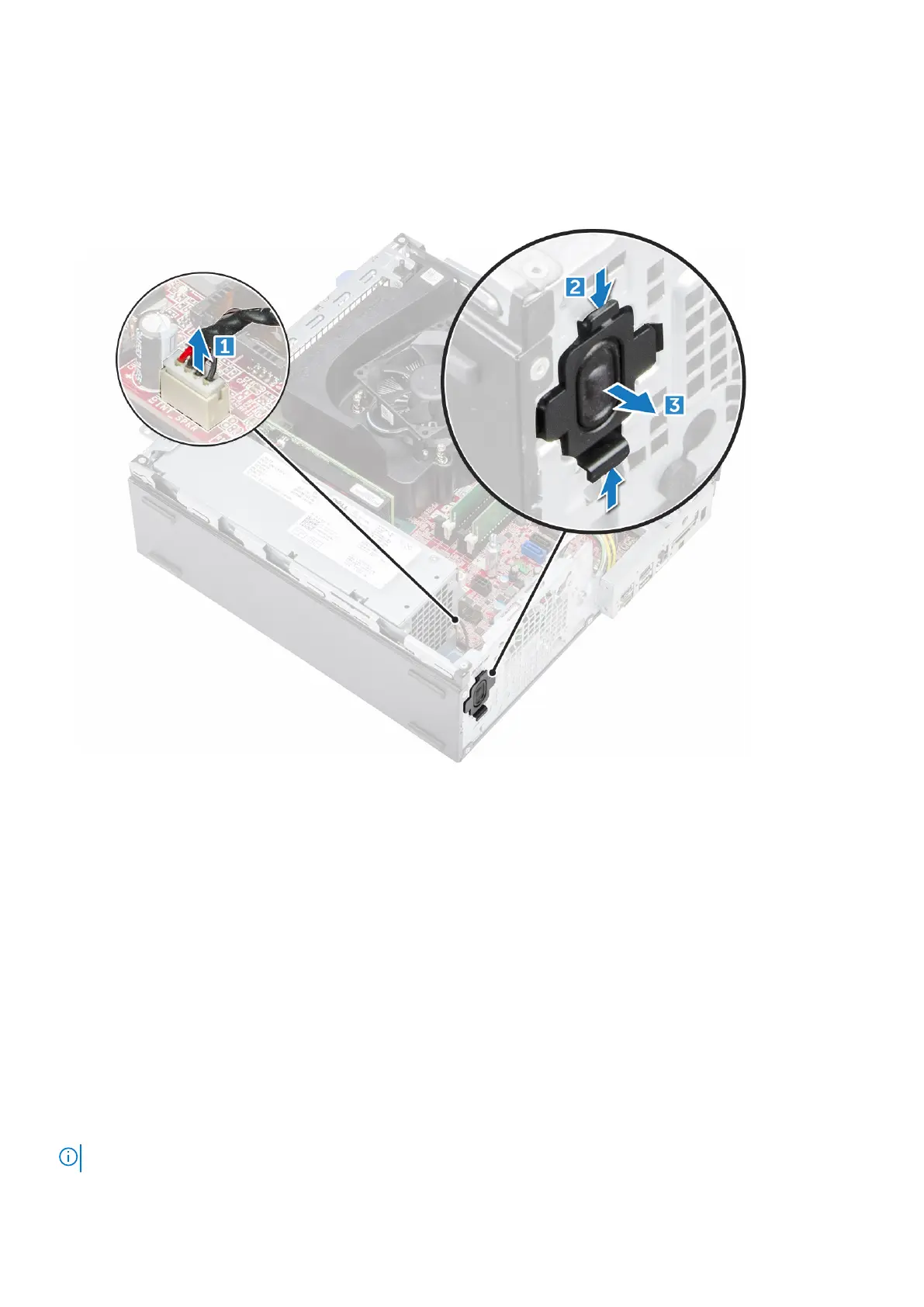

3. To remove the speaker:
a. Disconnect the speaker cable from the system board [1].
b. Press the release tabs and pull the speaker out from the computer [2] [3].
Installing the speaker
1. Insert the speaker into the slot and press it until it clicks into place.
2. Connect the speaker cable to the connector on the system board.
3. Install the:
a. optical drive
b. 2.5–inch drive assembly
c. bezel
d. cover
4. Follow the procedure in After working inside your computer.
Intrusion switch
Removing intrusion switch
NOTE: Depending on the configuration you order, you may see either of the heat sinks as shown in the image below.
Disassembly and reassembly 15
