Dell OptiPlex 7050 Small Form Factor User Manual

Removing the 2.5-inch drive from the bracket
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. cover
b. 2.5-inch drive assembly

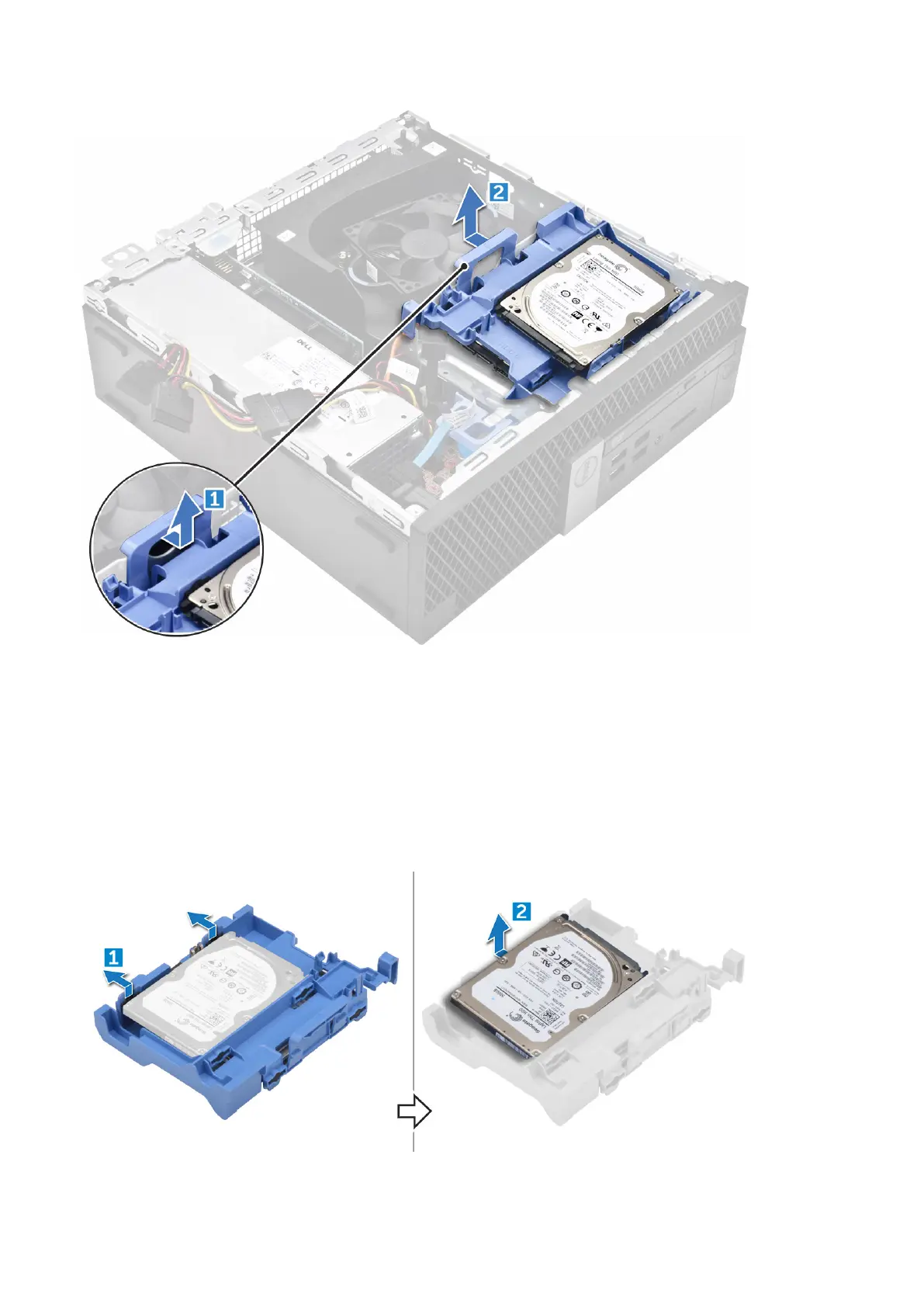

3. To remove the drive:
a. Pull one side of the drive bracket to disengage the pins on the bracket from the slots on the drive [1].
b. Lift the drive out of the 2.5-inch drive bracket [2].
18
Disassembly and reassembly
