1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. cover
b. bezel
c. drive assembly
d. optical drive

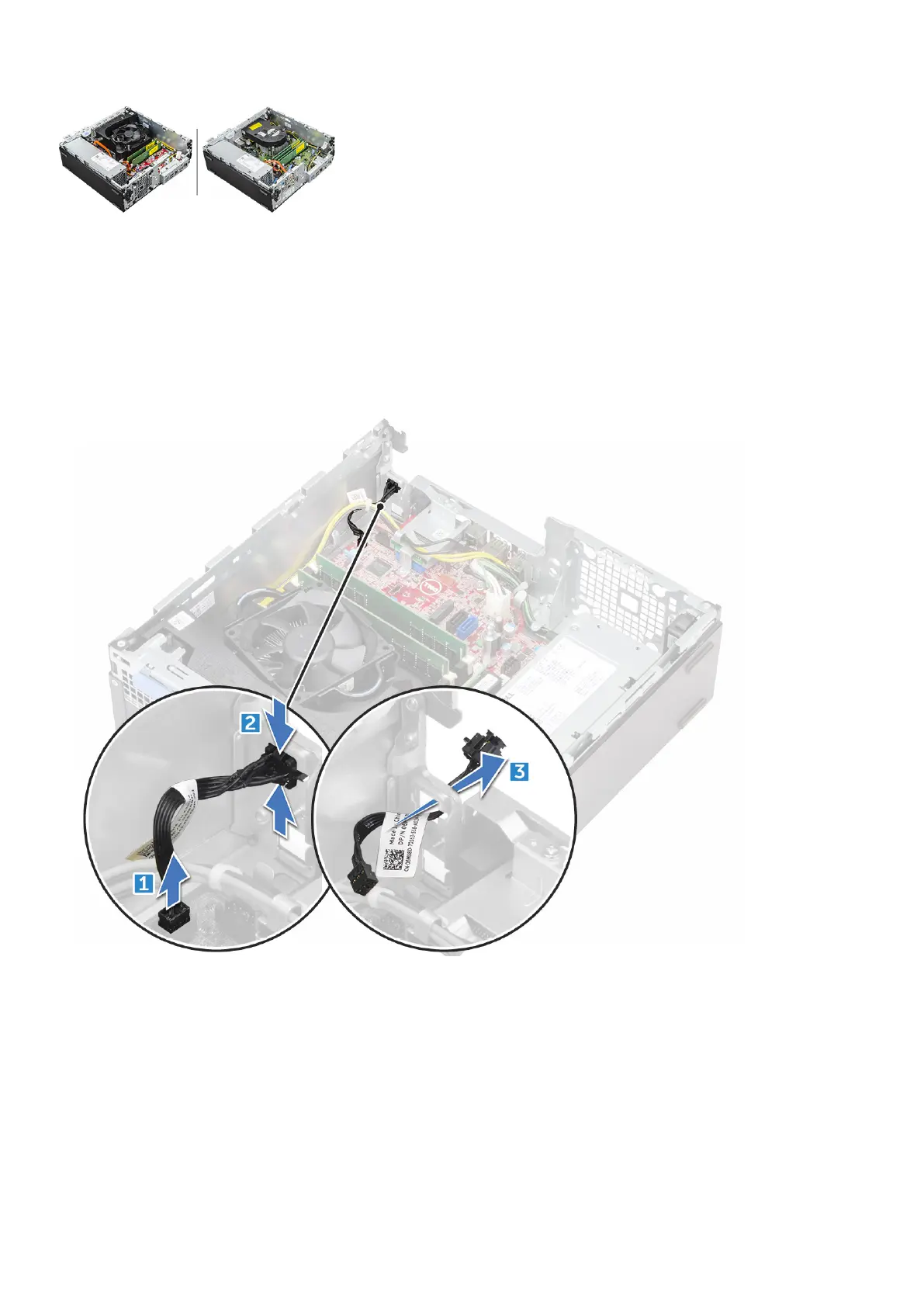

3. To remove the power switch:
a. Disconnect the power switch cable from the system board [1].
b. Press the power switch retention tabs and pull out from the computer [2] [3].
Installing the power switch
1. Slide the power switch module into the slot on the chassis until it clicks into place.
2. Connect the power switch cable to the connector on the system board.
3. Install the:
a. drive assembly
b. optical drive
c. bezel
d. cover
32
Disassembly and reassembly
