1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. cover

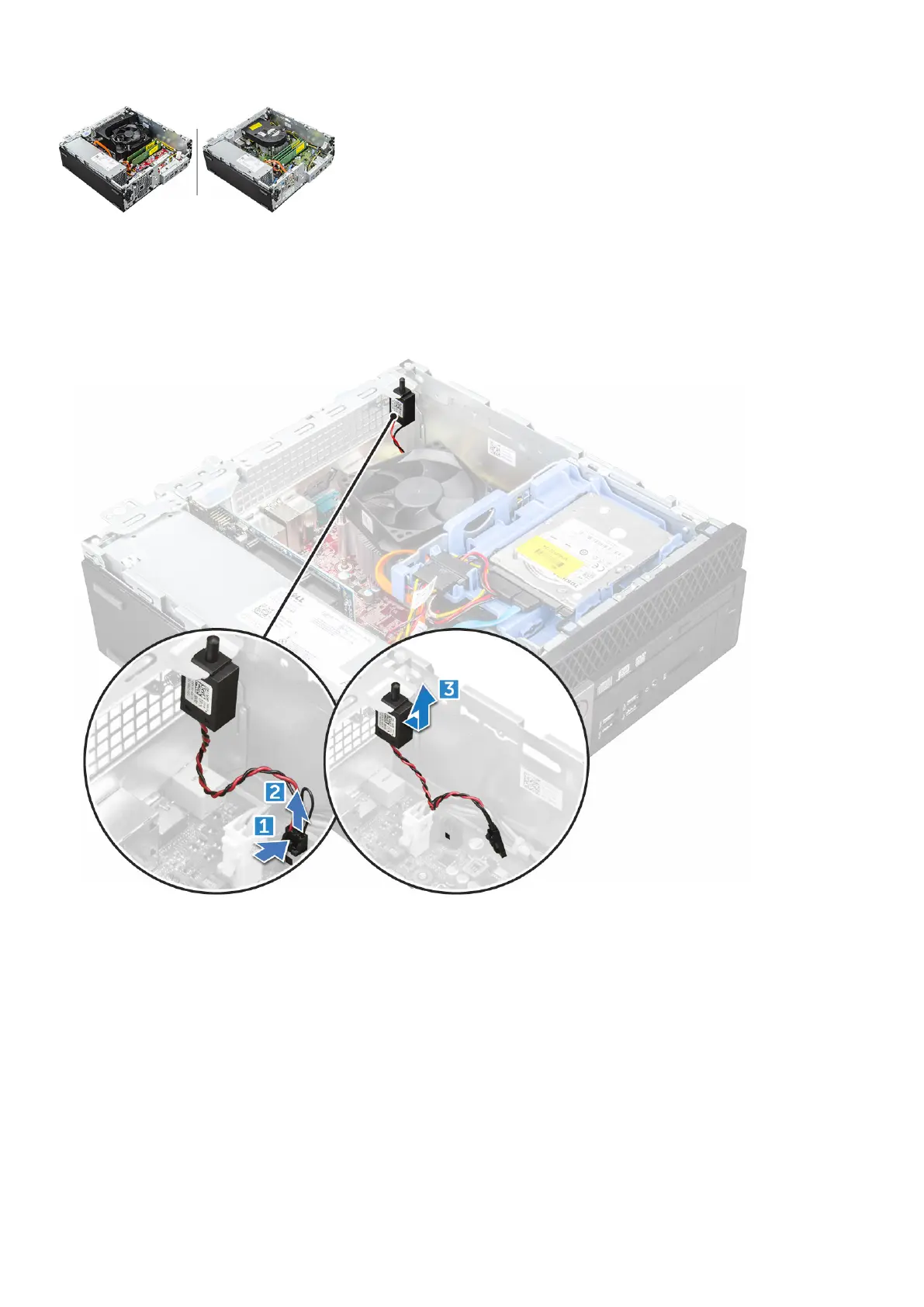

3. To remove the intrusion switch:
a. Disconnect the intrusion switch cable from the connector on the system board [1][2].
b. Slide the intrusion switch and lift it away from the computer [3].
Installing the intrusion switch
1. Insert the intrusion switch into the slot on the chassis.
2. Connect the intrusion switch cable to the system board.
3. Install the:
a. cover
4. Follow the procedure in After working inside your computer.
16
Disassembly and reassembly
