a. heat sink assembly
b. optical drive
c. 2.5–inch drive assembly
d. cover
7. Follow the procedure in After working inside your computer.
Memory module
Removing memory module
NOTE: Depending on the configuration you order, you may see either of the heat sinks as shown in the image below.
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. cover
b. bezel
c. 2.5–inch drive assembly
d. optical drive

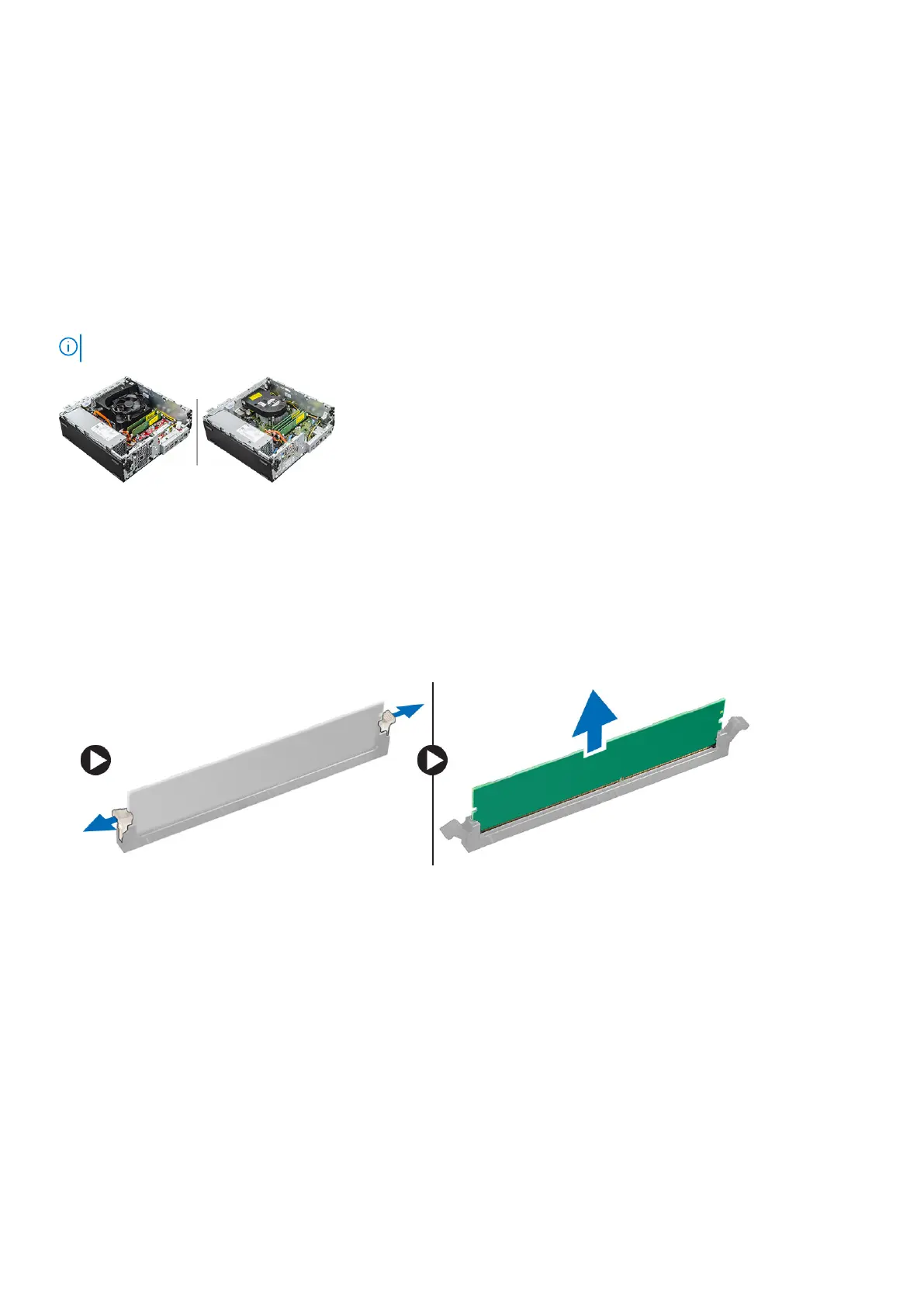

3. To remove the memory module:
a. Push the memory module retention tabs on both sides of the memory module.
b. Lift the memory module from the memory module connector on the system board.
Installing the memory module
1. Align the notch on the memory module with the tab on the memory module connector.
2. Insert the memory module into the memory module socket.
3. Press the memory module until the memory module retention tabs click into place.
4. Install the:
a. optical drive
b. 2.5–inch drive assembly
c. bezel
d. cover
5. Follow the procedure in After working inside your computer.
