Installing the heat sink assembly
1. Place the heat sink assembly onto the processor.
2. Tighten the captive screws to secure the heat sink assembly to the system board.
3. Connect the heat sink assembly cable to the system board.
4. Install the:
a. optical drive
b. 2.5–inch drive assembly
c. bezel
d. cover
5. Follow the procedure in After working inside your computer.
Processor
Removing processor

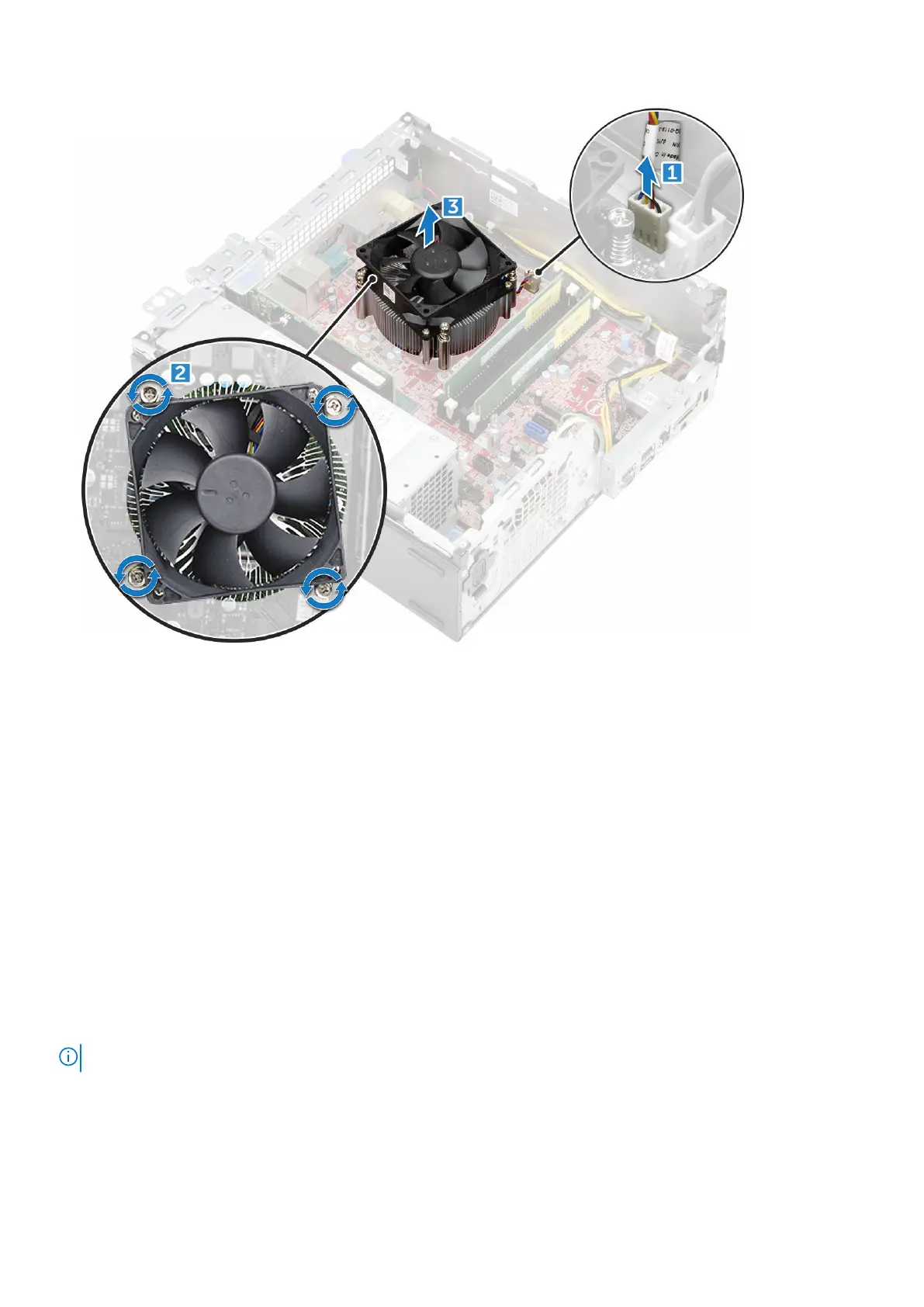

NOTE: Depending on the configuration you order, you may see either of the heat sinks as shown in the image below.
24 Disassembly and reassembly
