Dell OptiPlex 7050 Small Form Factor - Page 29

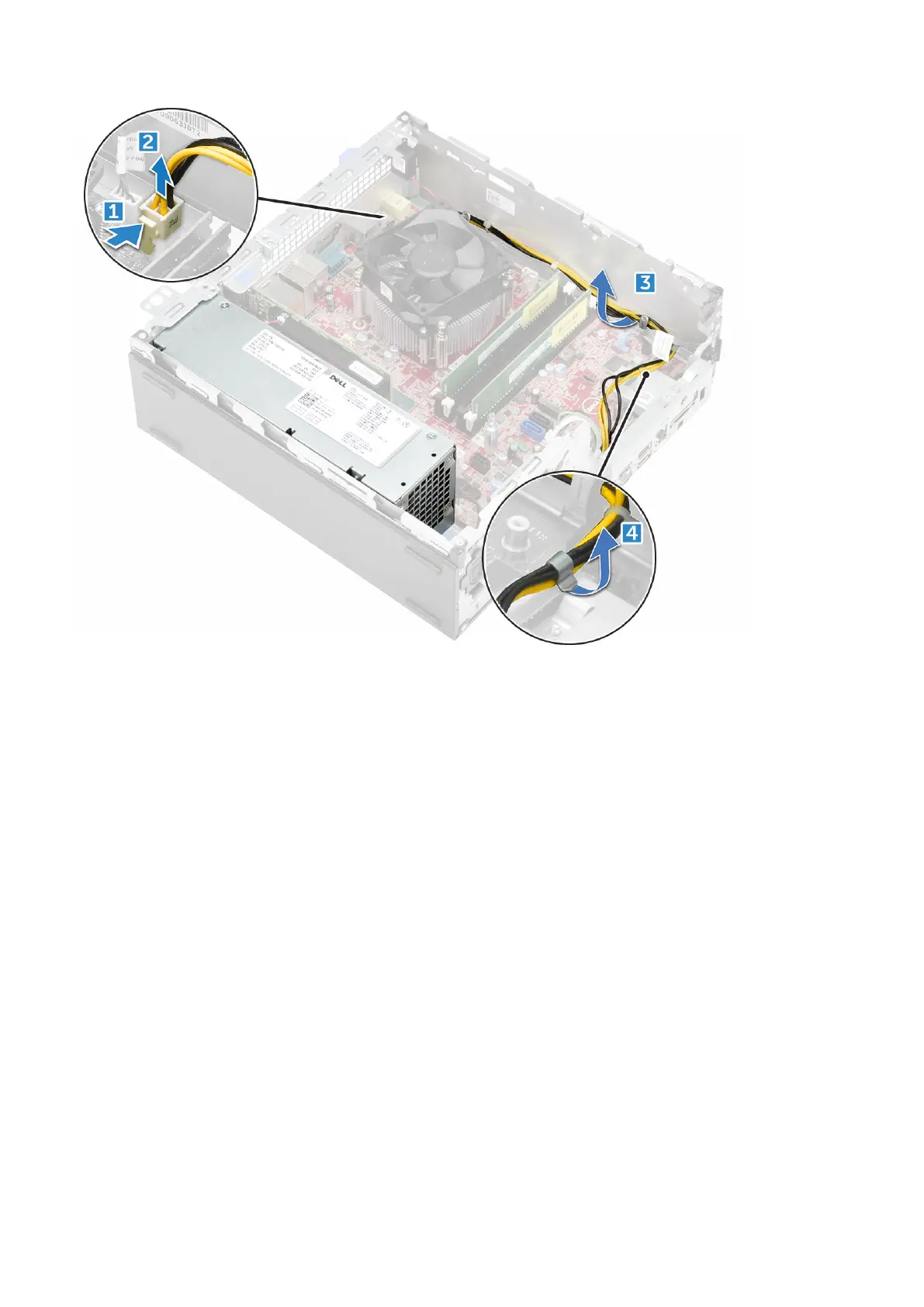

4. To remove the PSU:
a. Disconnect the power cable from the system board [1] [2].
b. Lift the cables away from the computer [3].
c. Remove the screws that secure the PSU to the computer [4].
Disassembly and reassembly
29
