Steps
1. Remove the two screws (M3X3) that secure the optional HDMI module to the chassis.
2. Disconnect the optional HDMI-module cable from the connector (VIDEO) on the system board.
3. Lift the optional HDMI module off the system board.
Installing the optional HDMI module
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the optional HDMI module and provide a visual representation of the installation
procedure.

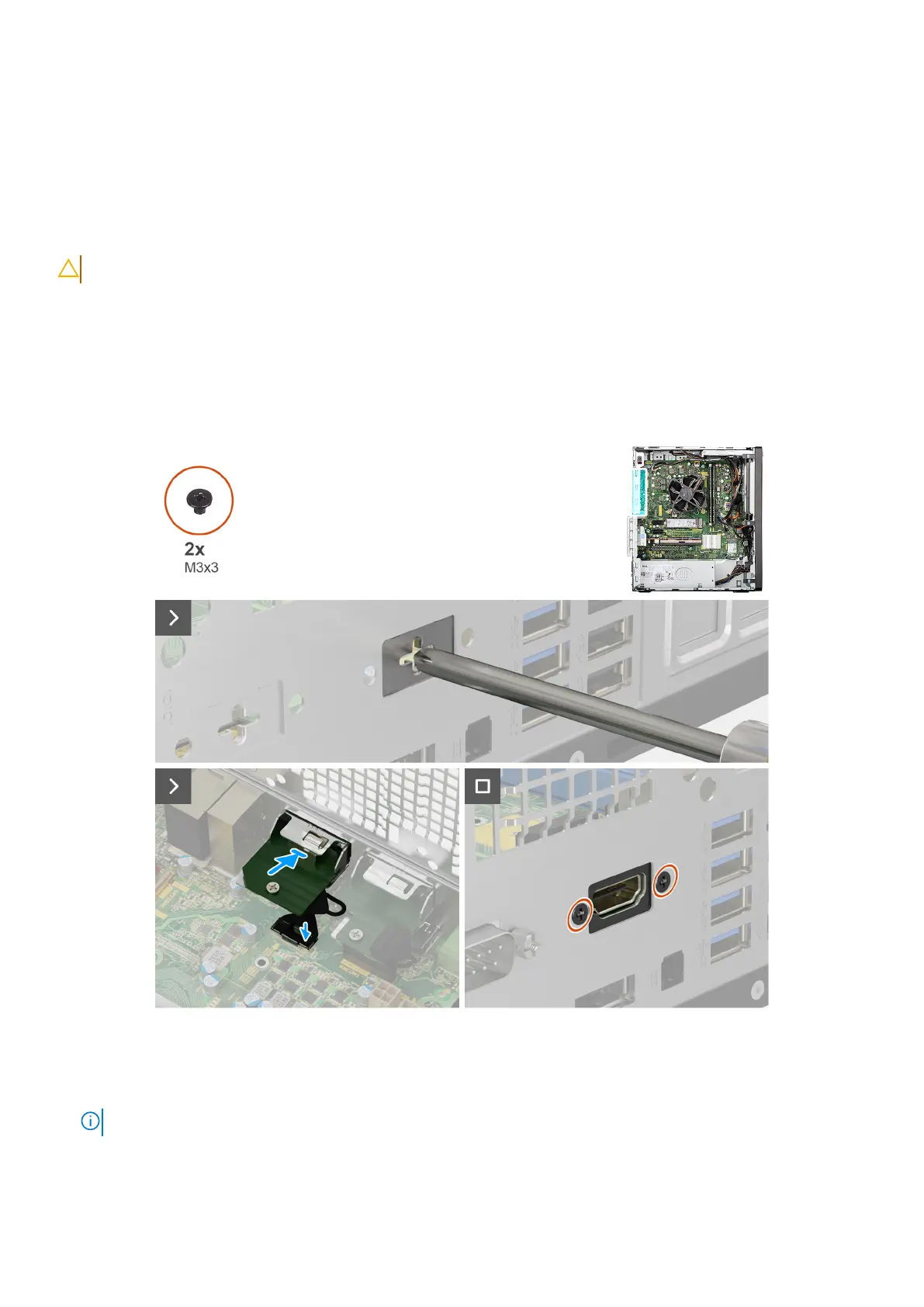

Figure 77. Installing the optional HDMI module
Steps
1. Using a screwdriver, remove the optional-module cover from the chassis.
NOTE: This step is applicable only when the optional HDMI module is being installed for the first time.
Removing and installing Field Replaceable Units (FRUs) 101
