Steps
1. Disconnect the data and power cables from the connectors on the slim optical drive.
2. Pull the securing tab to release the slim optical drive from the chassis.
3. Slide and remove the slim optical drive from the slot on the chassis.
4. Pry the slim optical-drive bracket to release it from the slot on the slim optical drive.
5. Remove the slim optical-drive bracket from the slim optical drive.
Installing the slim optical drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the slim optical drive and provide a visual representation of the installation
procedure.

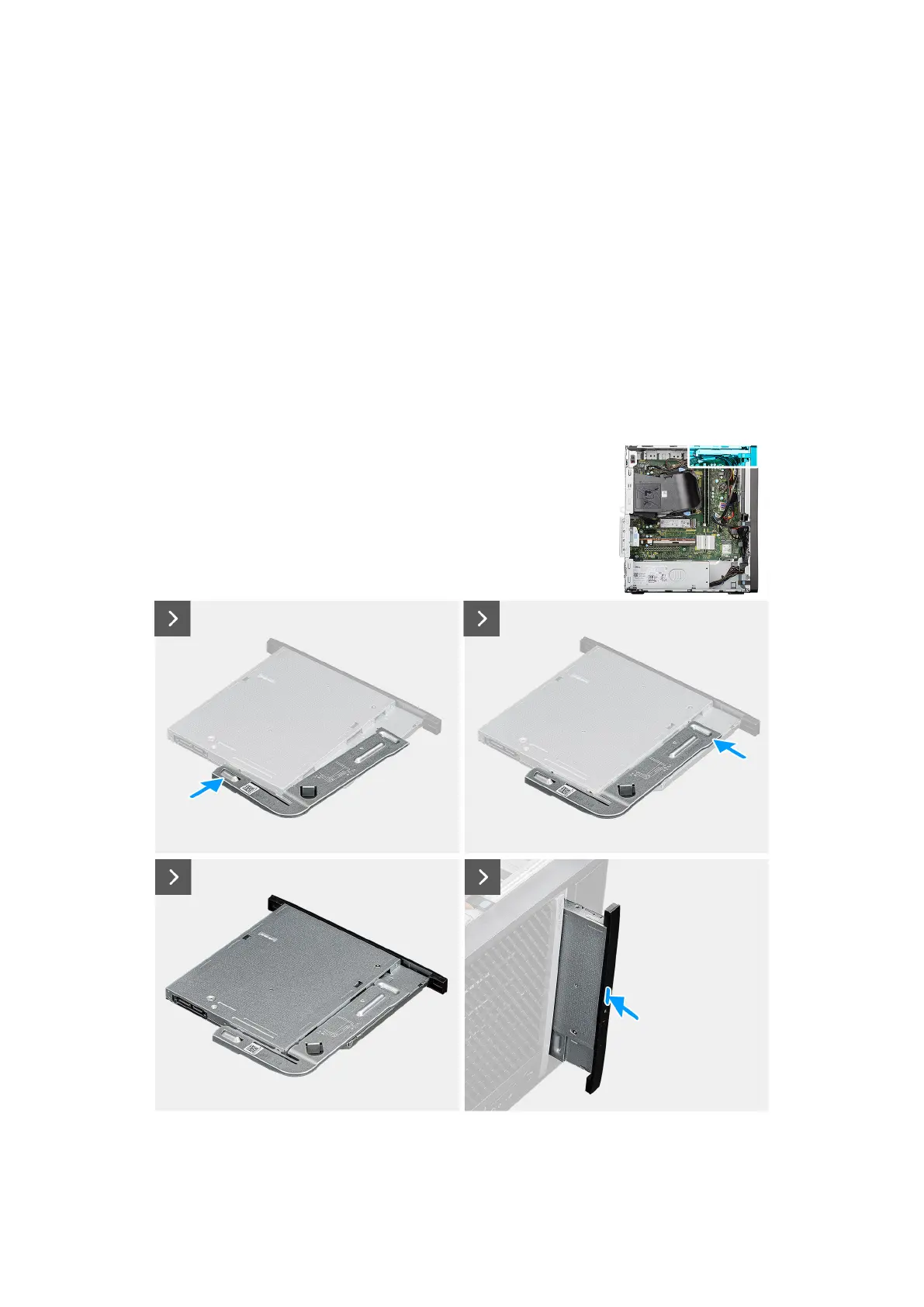

Figure 39. Installing the slim optical drive
Removing and installing Customer Replaceable Units (CRUs)
65
