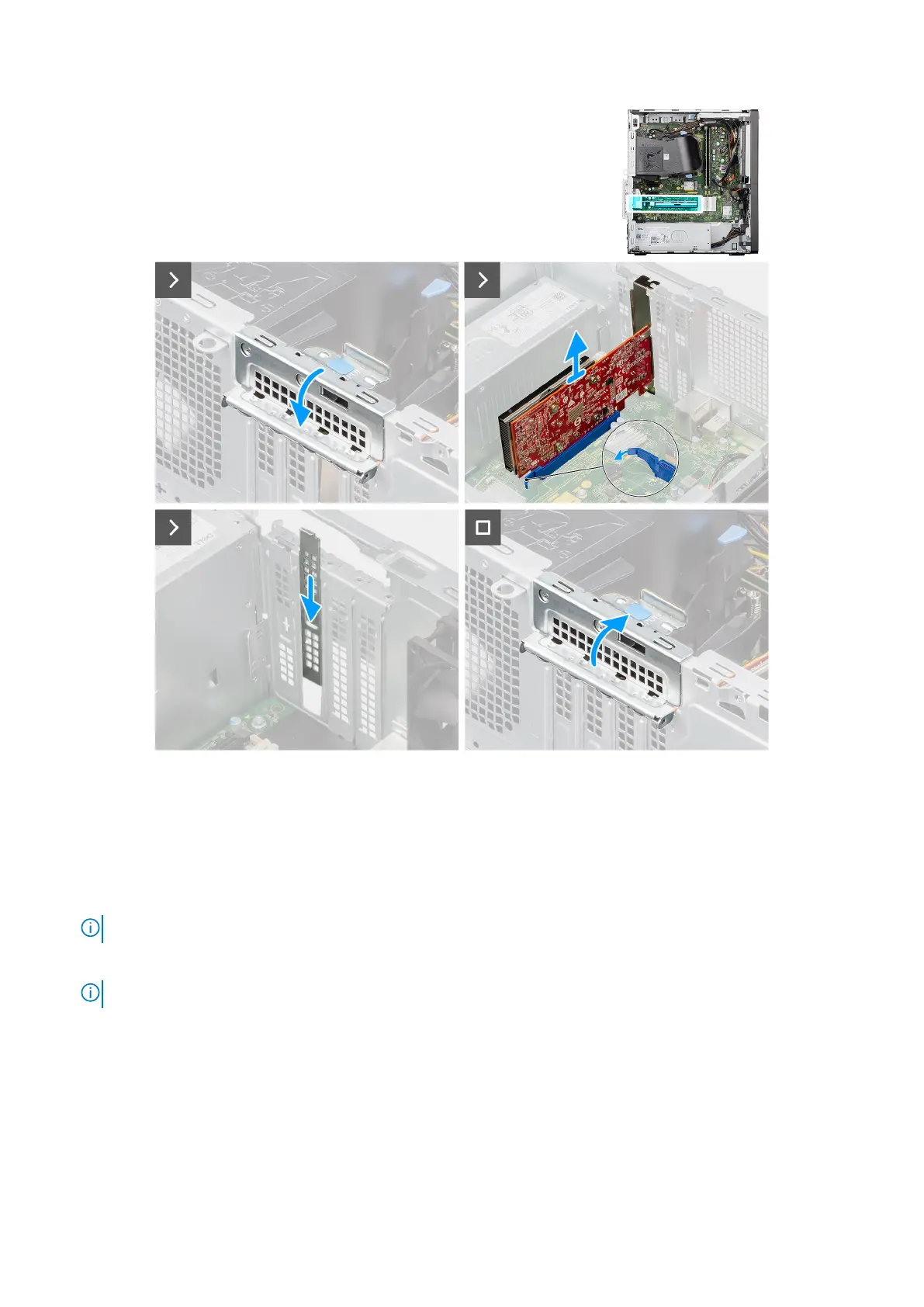

Figure 33. Removing the graphics card
Steps
1. Lift the pull tab on the PCIe door outwards to open the PCIe door.
2. Push and hold the tab that secures the graphics card to the PCIe card connector (SLOT3) on the system board.
3. Gently lift the graphics card off the PCIe card connector on the system board.
4. Align and slide the PCIe blanking plate in the slot on the chassis.
NOTE: Do not perform this step if you are immediately replacing the graphics card with a new PCIe card.
5. Close the PCIe door and press it gently until it clicks in place on the chassis.
NOTE: Do not perform this step if you are immediately replacing the graphics card with a new PCIe card.
Installing the graphics card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
59
