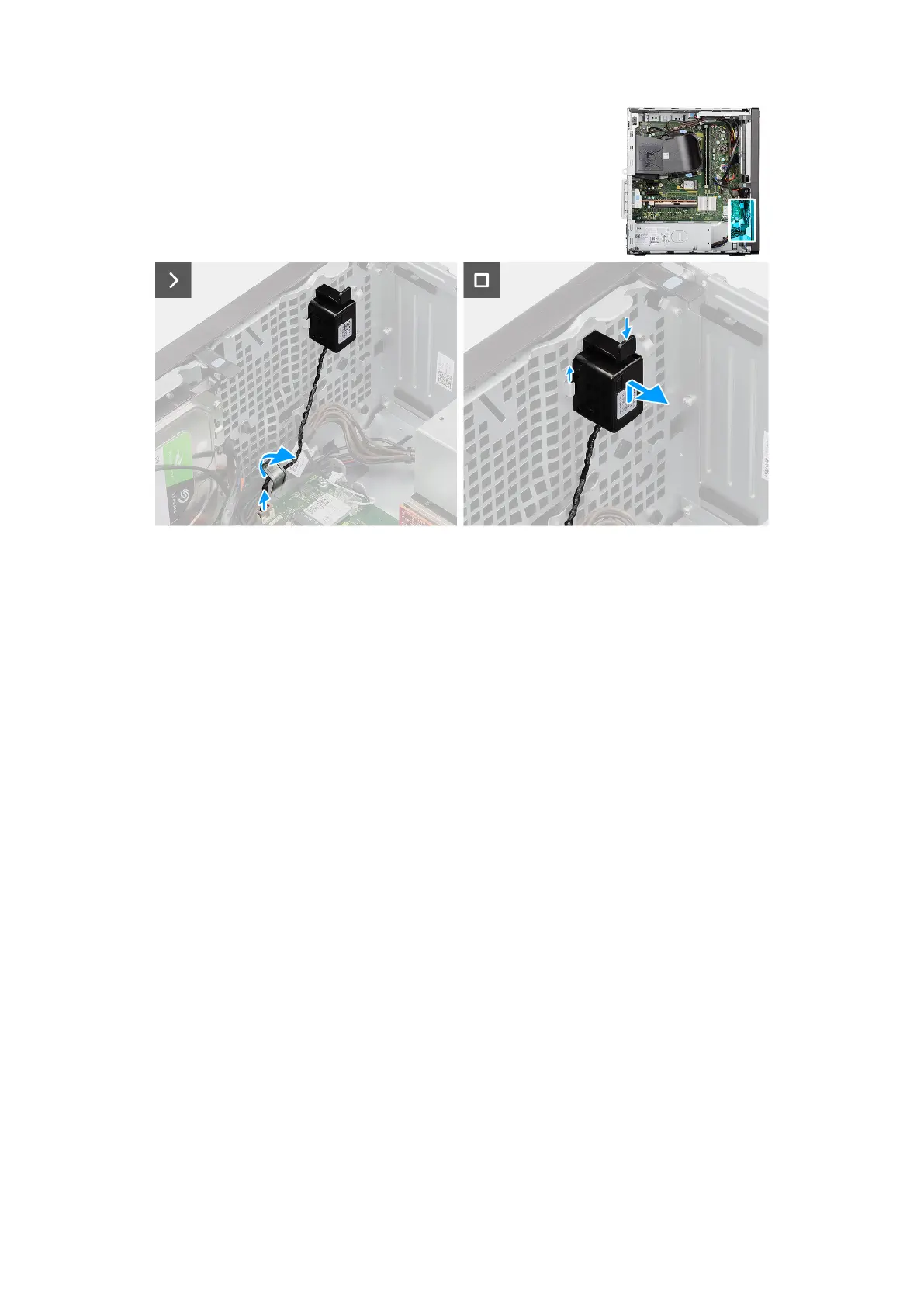

Figure 41. Removing the internal speaker
Steps
1. Remove the speaker cable from the retention clip.
2. Disconnect the speaker cable from the connector (INSKR1) on the system board.
3. Press the tab on the internal speaker, slide the internal speaker upwards, and lift the internal speaker along with the cable
from the slot on the chassis.
Installing the internal speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the internal speaker and provide a visual representation of the installation
procedure.
Removing and installing Customer Replaceable Units (CRUs)
67
