2. Push and hold the tab that secures the serial/parallel port card to the PCIe card connector (SLOT3) on the system board.
3. Gently lift the serial/parallel port card off the PCIe card connector on the system board.
4. Align and slide the PCIe blanking plate in the slot on the chassis.
NOTE: Do not perform this step if you are immediately replacing the serial/parallel port card with a new PCIe card.
5. Close the PCIe door and press it gently until it clicks in place on the chassis.
NOTE: Do not perform this step if you are immediately replacing the serial/parallel port card with a new PCIe card.
Installing the serial/parallel port card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the communication card and provide a visual representation of the installation
procedure.

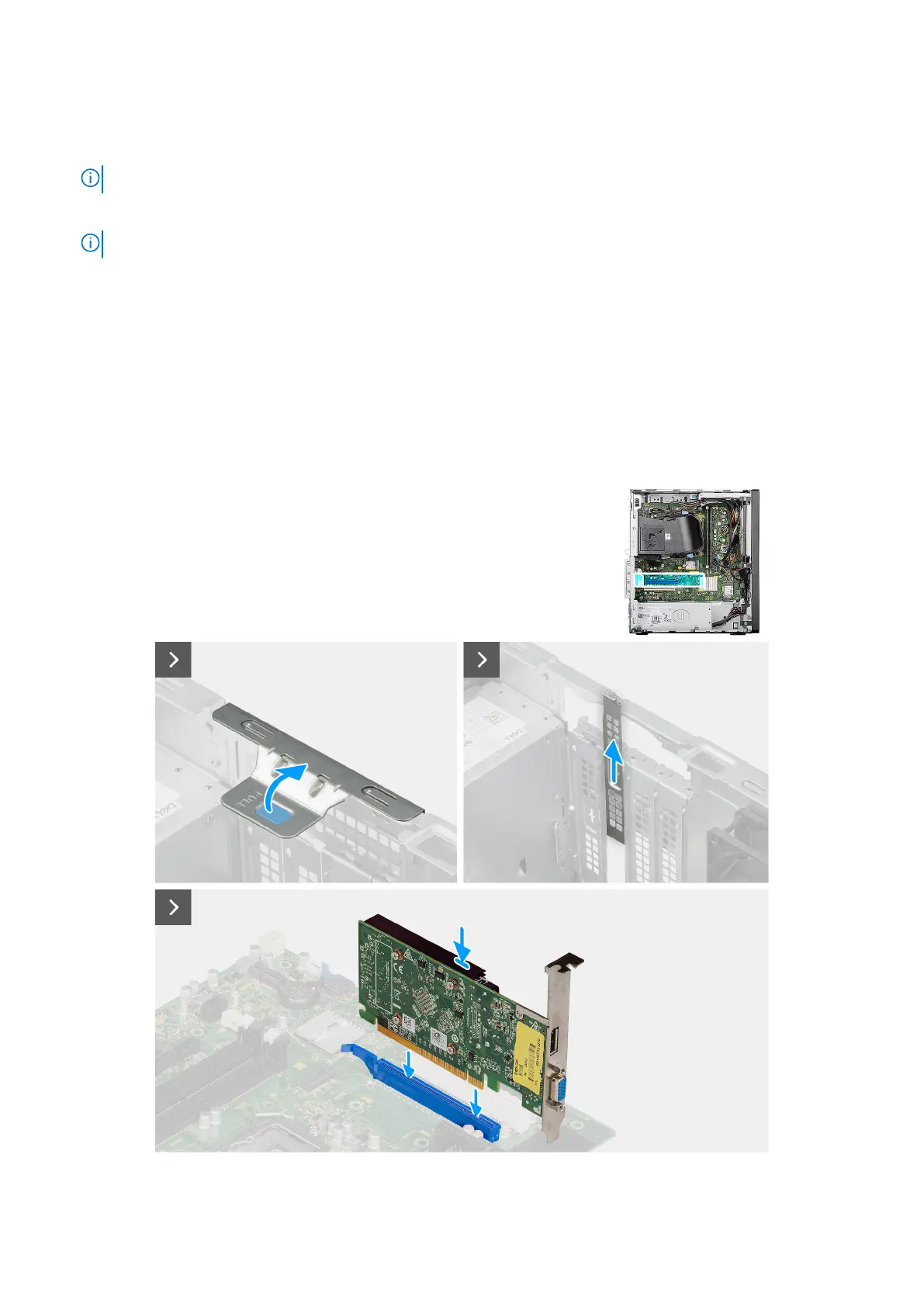

Figure 45. Installing the serial/parallel port card
70
Removing and installing Customer Replaceable Units (CRUs)
