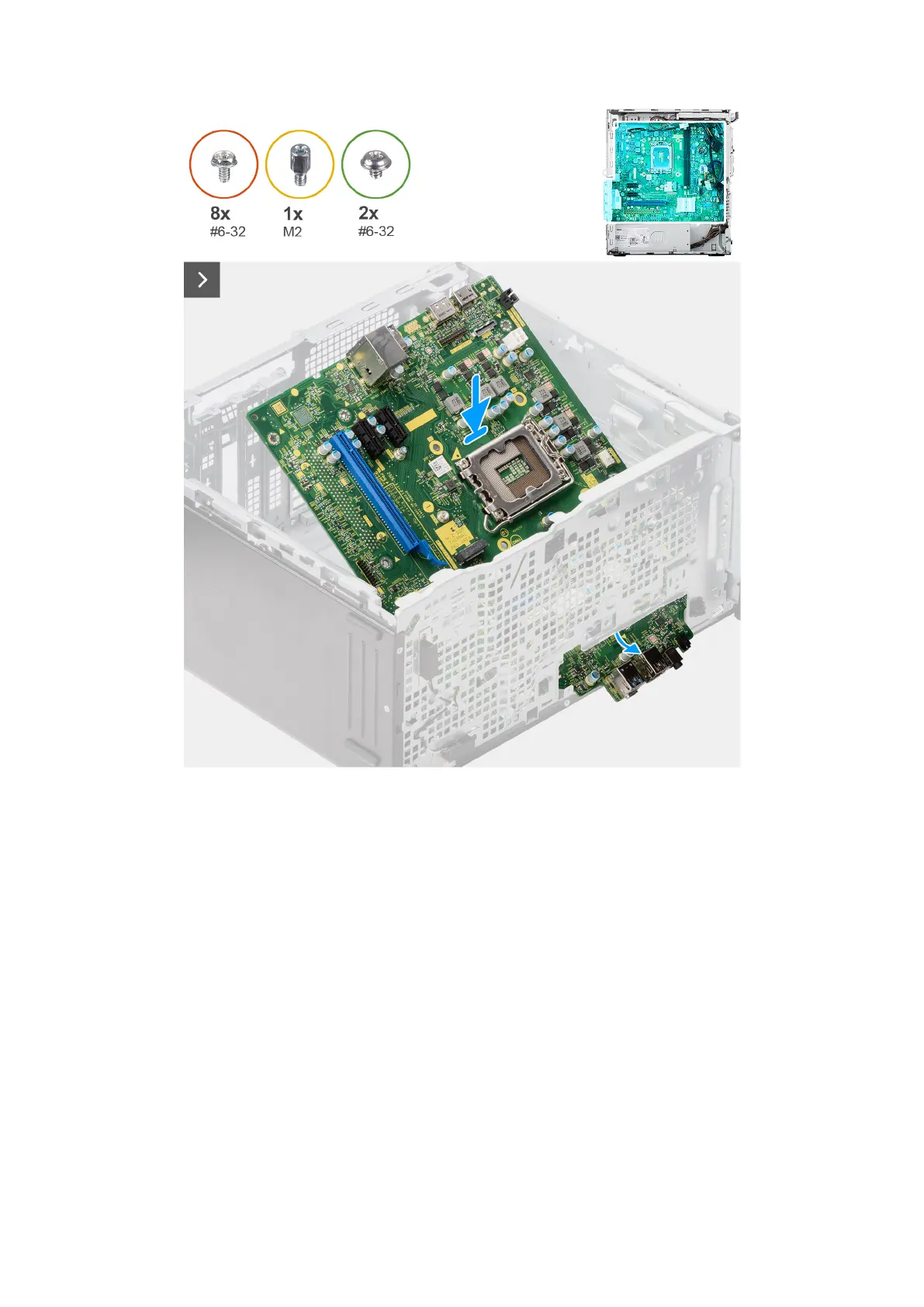

Figure 88. Installing the system board
Steps
1. Slide the front I/O-ports on the system board into the front I/O-slots on the chassis and align the screw holes on the
system board with the screw holes on the chassis.
2. Replace the M.2 solid-state drive standoff nut (M2) to secure the system board to the chassis.
3. Replace the eight screws (#6-32) to secure the system board to the chassis.
