About this task
The following images indicate the location of the optional serial module and provide a visual representation of the installation
procedure.

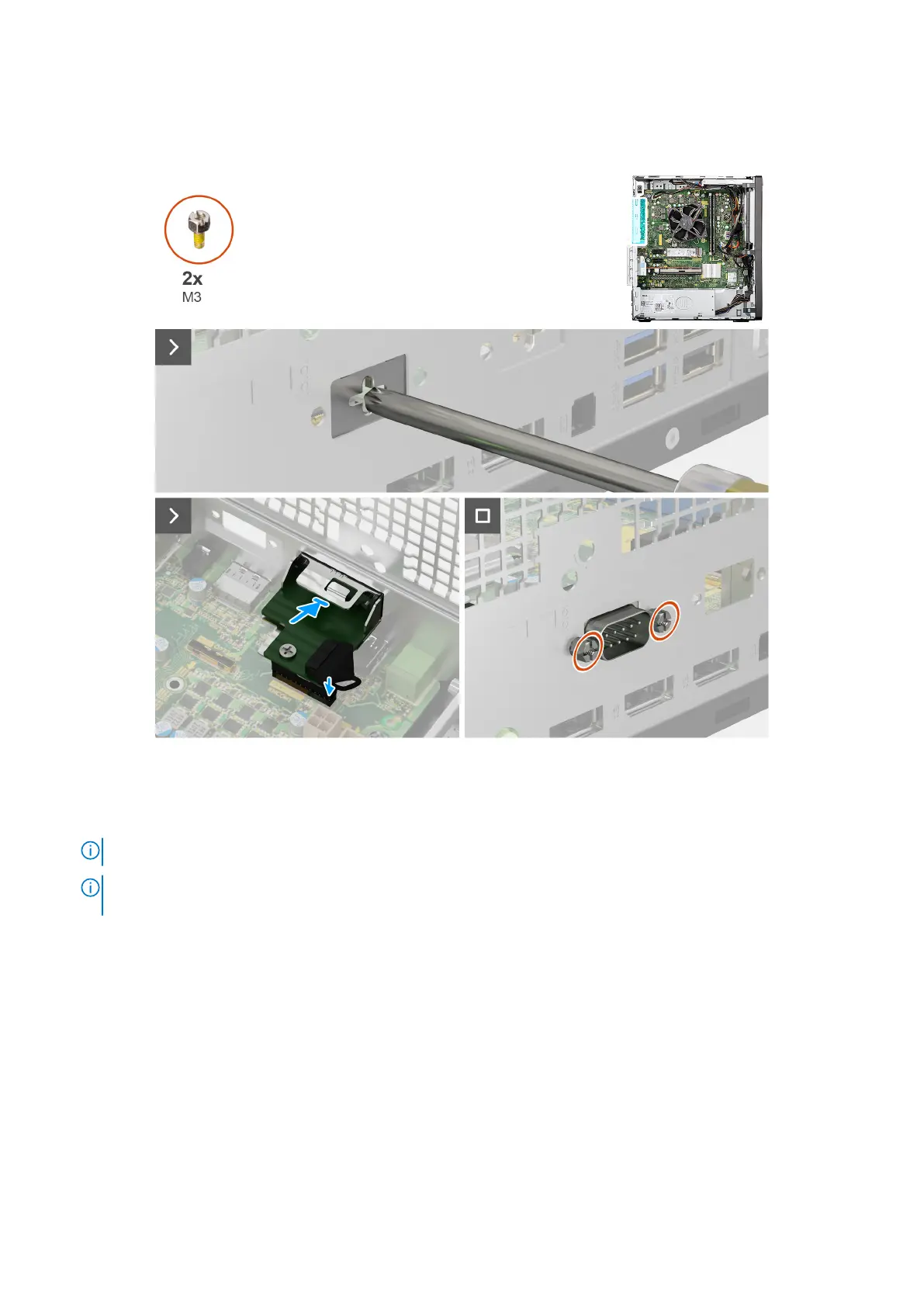

Figure 71. Installing the optional serial module
Steps
1. Using a screwdriver, remove the optional-module cover from the chassis.
NOTE: This step is applicable only when the optional serial module is being installed for the first time.
NOTE: To remove the optional-module cover, insert a flat-head screwdriver in the hole of the cover, push the cover to
release it, and then lift the cover off the chassis.
2. Insert the optional serial module in the slot on the chassis.
3. Connect the serial-module cable to the connector (KB MS SERIAL) on the system board
4. Replace the two screws (M3) to secure the optional serial module to the chassis.
Next steps
1. Install the fan duct.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
96
Removing and installing Field Replaceable Units (FRUs)
