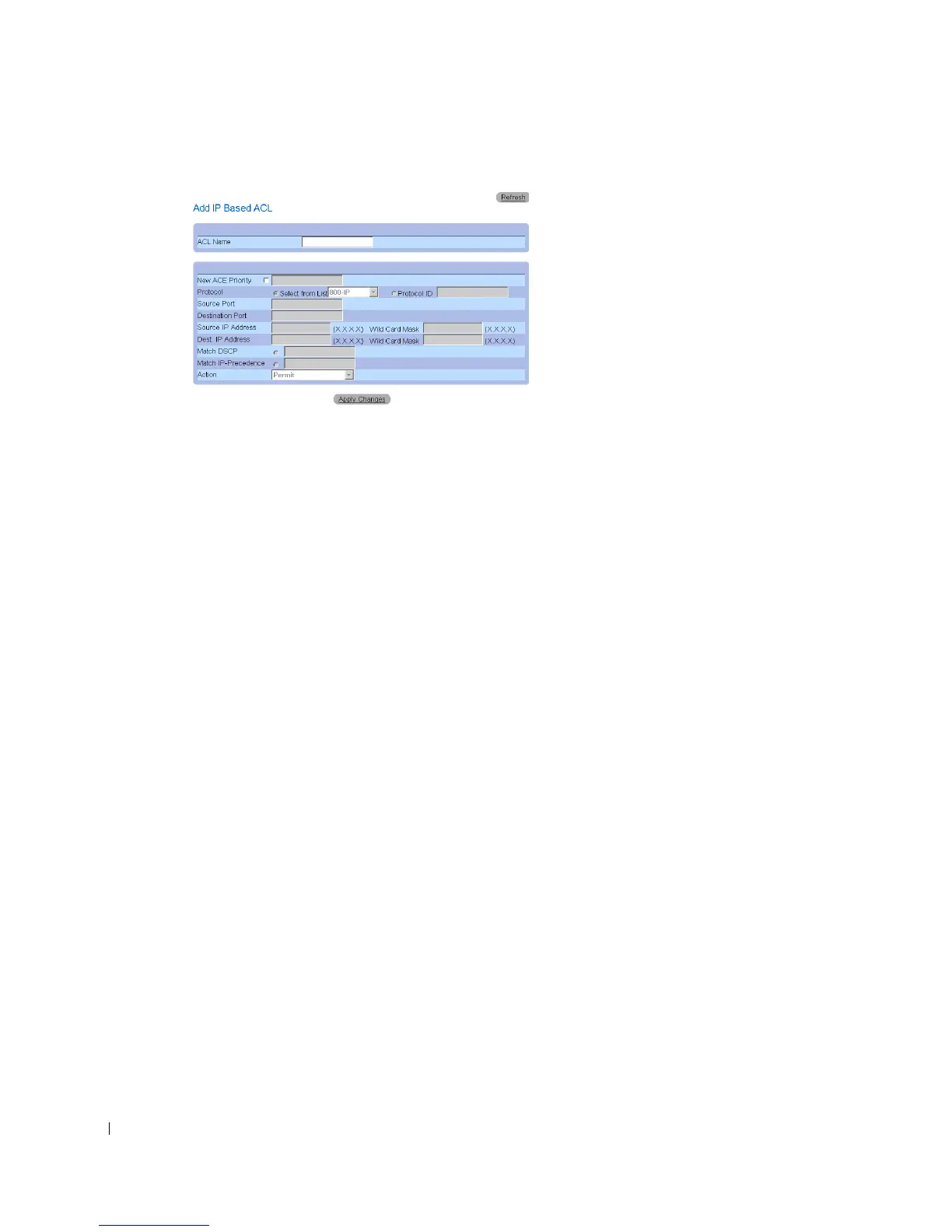

Add IP Based ACL Page
3
Define the ACL Name, New Ace Priority, Protocol, Source and Destination Port,
Source and Destination IP Address, Match DSCP or Match IP Precedence, and
Action fields.
4 Click Apply Changes. The IP-based ACLs are defined. If a new ACE priority was
defined, it is added to the new ACL.
Assigning ACEs to a IP-based ACL:
1 Open the Add ACE to IP Based ACL page.
2 Select an ACL in the ACL Name drop-down list.
3 Define the New ACE Priority field.
4 Define the ACE No., Protocol, Source and Destination Port, Source and Destination
IP Address, Match DSCP or Match IP Precedence, and/or Action fields.
5 Click Apply Changes. The ACE is assigned to the IP-based ACL.
Displaying ACL-specific ACEs:
1 Open the Add ACE to IP Based ACL page.
2 Click Show All. The ACEs Associated with IP-ACL page opens.
