36 Installing the PowerConnect 3324/3348 Switch
www.dell.com | support.dell.com
Port Connections
The ports are all standard RJ45 Ethernet ports. Switching ports can connect to stations
wired in standard RJ45 Ethernet station mode using straight cables. Transmission devices
use crossed cables to connect to each other.

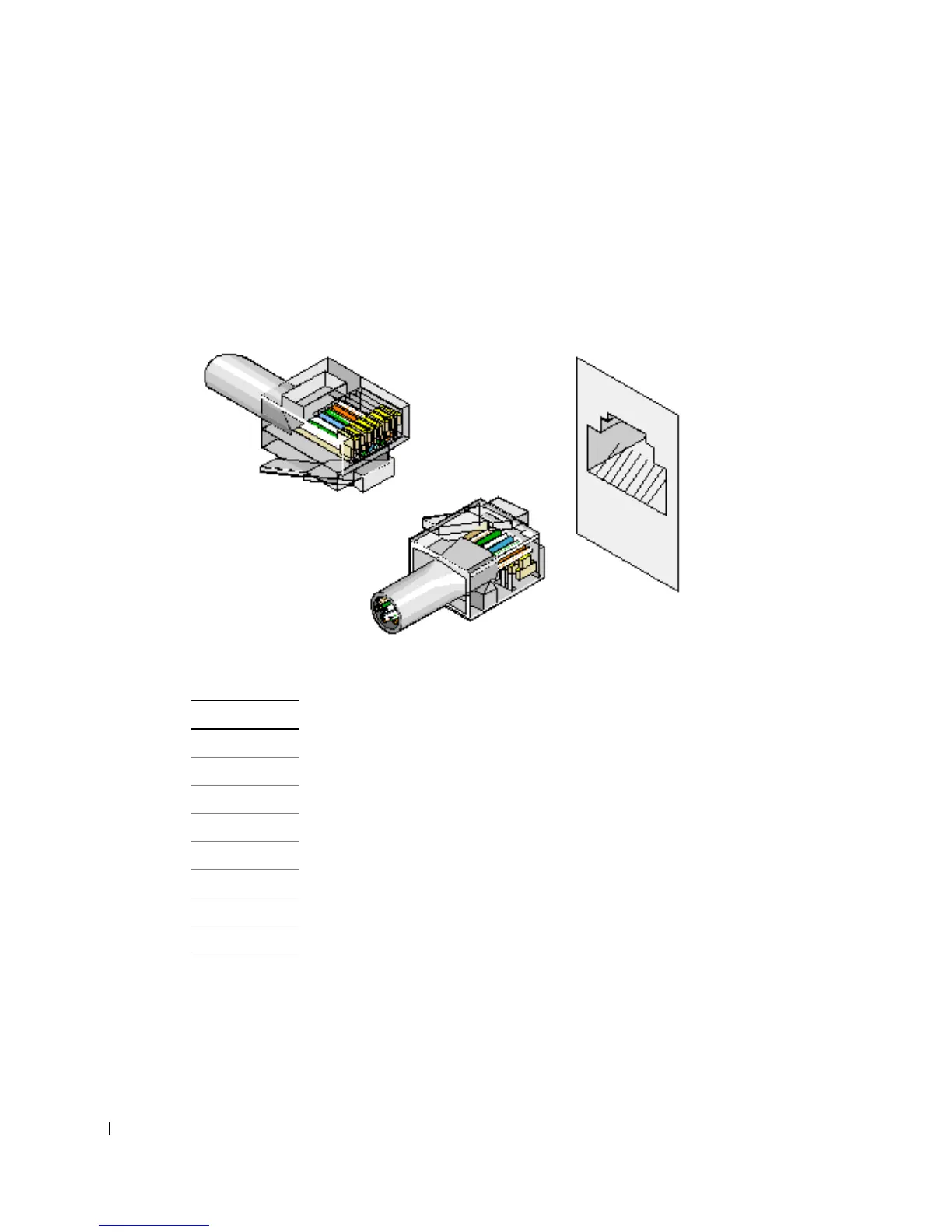

The following figure illustrates the RJ45 pin number allocations for the 10/100M ports.
RJ45 Pin Number Allocation
Pin Use
1RX +
2RX -
3TX +
4
5--
6TX -
7-
8-
