Denied ACEs Counters
The Denied ACEs counters contain the number of packets that were dropped
(denied) because they did not meet ACL criteria expressed in some ACE.
To display the denied ACE counters:
1
Click Statistics/RMON > Table Views > Denied ACEs Counters in the
tree view to display the
Denied ACEs Counters page.

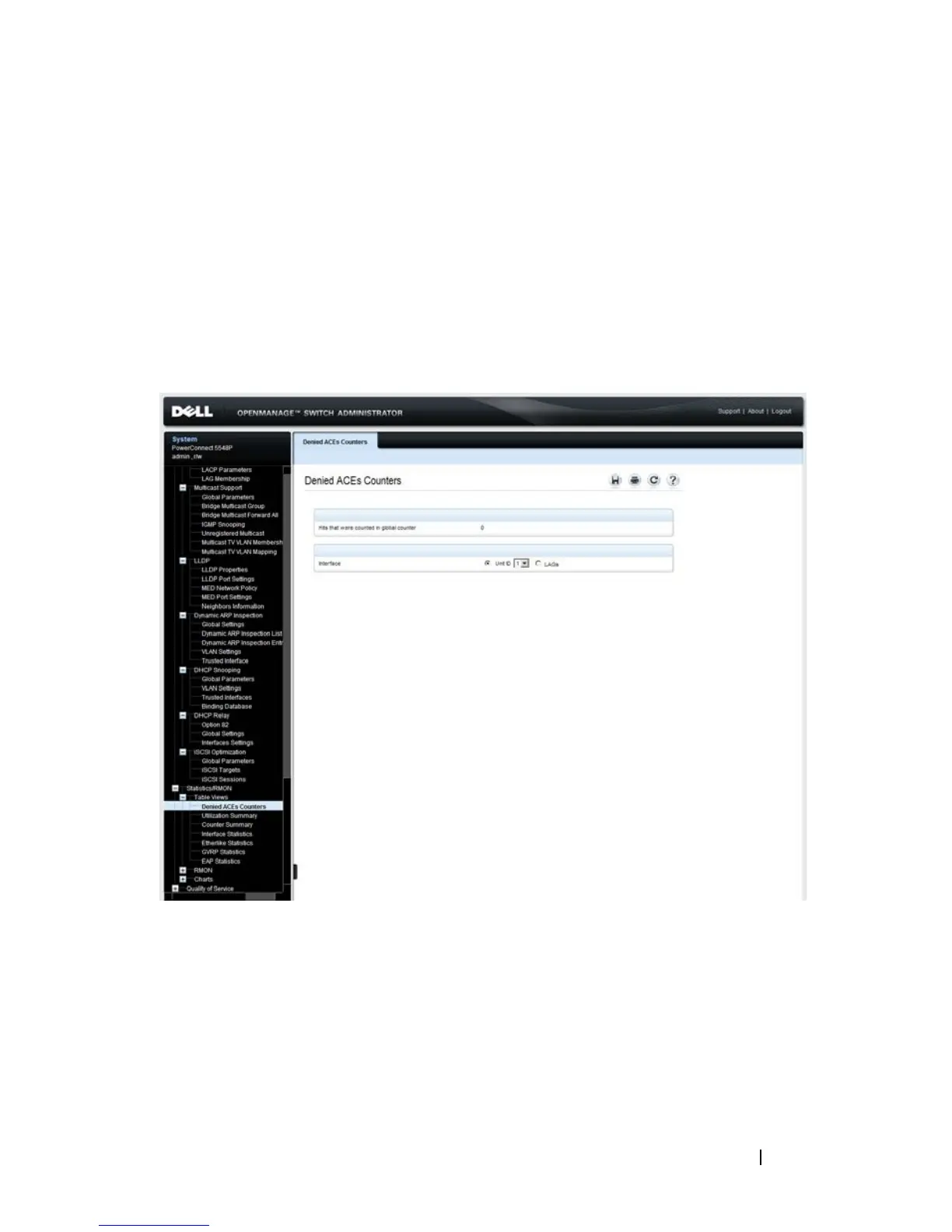

Figure 21-1. Denied ACEs Counters
The global number of dropped packets is displayed along with the number
of dropped packets on each interface.
2 To clear the counters, select either a stack unit and port or LAG. All
ports/LAGs in the unit are displayed.
3 Mark the counters to be cleared and click Clear Counters .
4 To clear all counters, click Clear All Counters .
