Interface Statistics
To display the number of received and transmitted packets on an interface:
1
Click Statistics/RMON > Table Views > Interface Statistics in the tree
view to display the
Interface Statistics page.

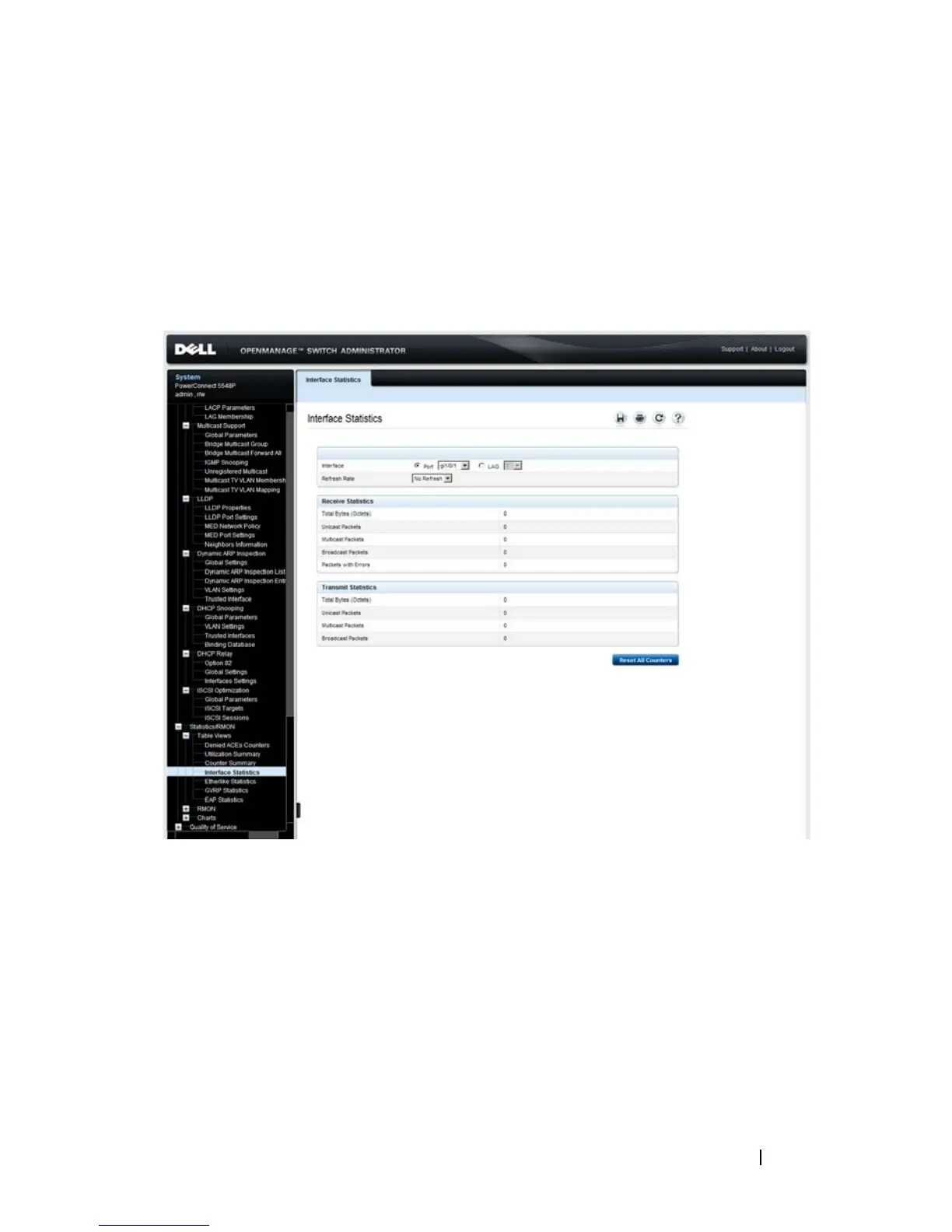

Figure 21-4. Interface Statistics
2 Select a port/LAG.
3 Select one of the Refresh Rate options to specify how frequently the
counters should be refreshed.
The following fields are displayed:
Receive Statistics
– Total Bytes (Octets) — Amount of octets received on the selected
interface.
