History Control
To display the requested RMON history group statistics or request a new
sample of interface statistics:
1
Click Statistics/RMON > RMON > History Control in the tree view to
display the
History Control: Summary page.

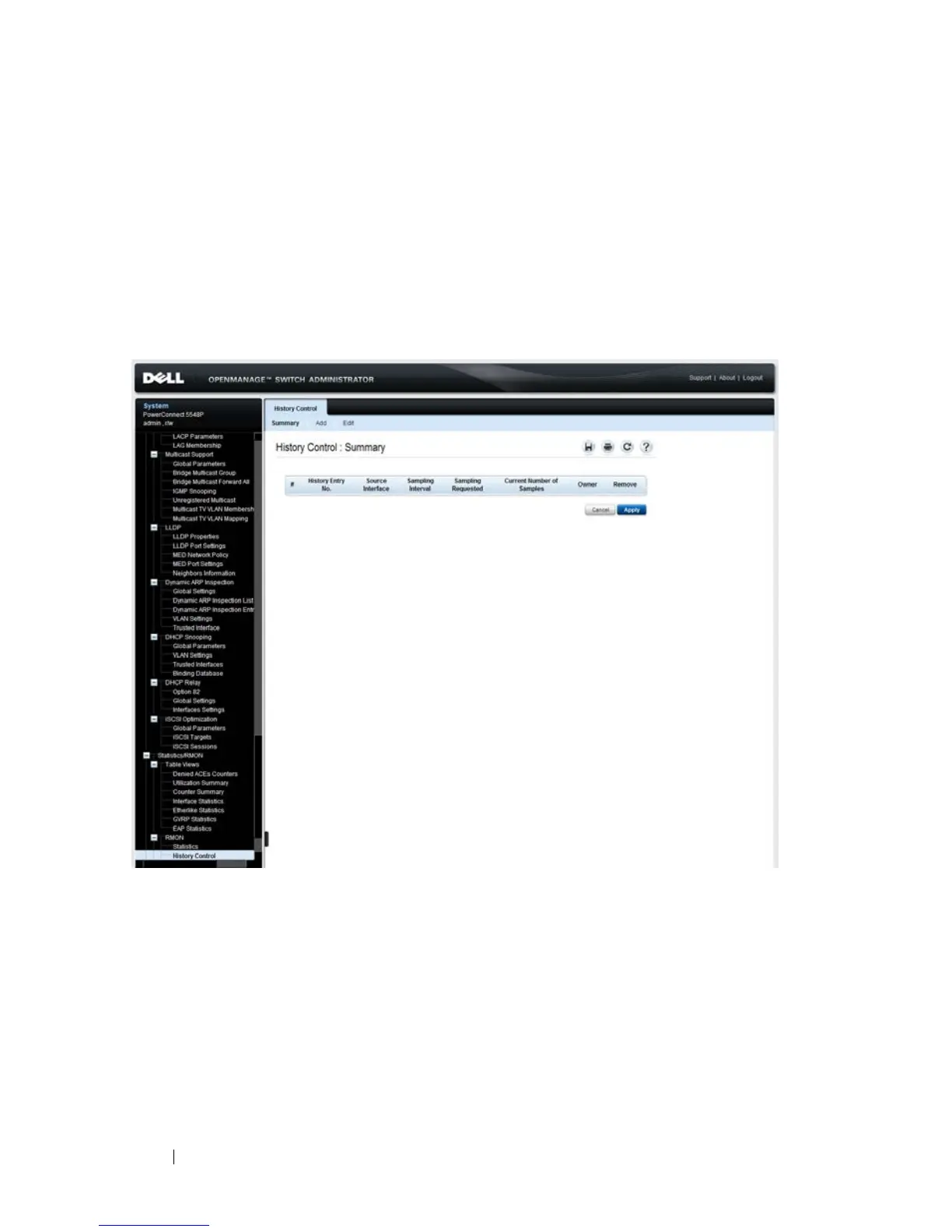

Figure 21-9. History Control: Summary
Previously-defined samples are displayed.
2 To add a new entry, click Add . The New History Entry number, which
uniquely identifies the sample, is displayed.
3 Enter the fields for the entry:
–
Source Interface — Sampled Ethernet interface.
–
Owner (0-20 characters) — RMON station or user that configured the
entry.
