682 Dell PowerConnect 55xx Systems User Guide
FILE LOCATION: C:\Users\gina\Desktop\Checkout_new\Maintenance Projects\Dell
Contax\CxUGQoS.fm
DELL CONFIDENTIAL – PRELIMINARY 9/11/12 - FOR PROOF ONLY
To set new DSCP values:
1
Click Quality of Service > QoS Advanced Mode > DSCP Mapping to
display the
DSCP Mapping page.

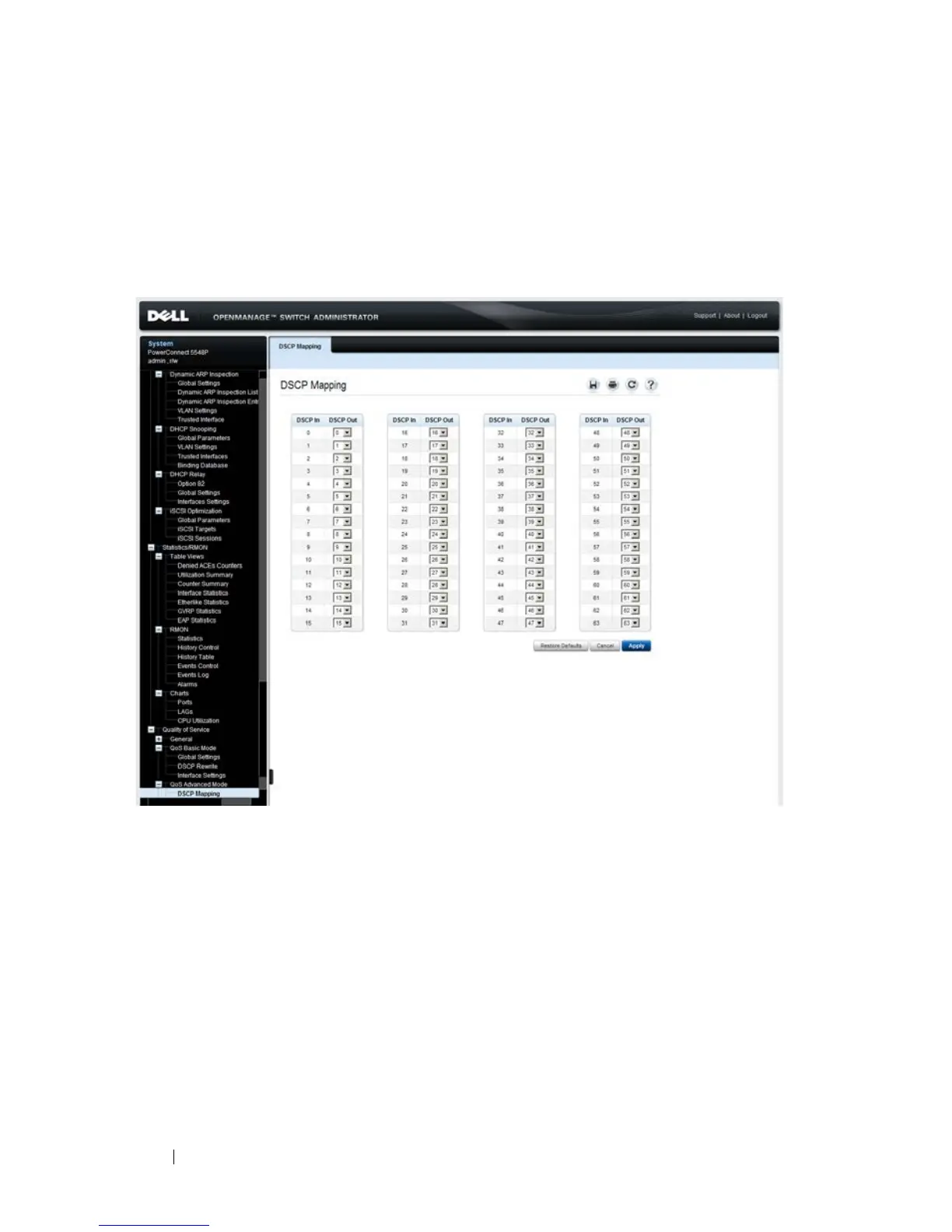

Figure 22-11. DSCP Mapping
2 If the Exceed Action is Out-of-Profile (in the Policy Class Maps page) or
Remark DSCP (in the Aggregate Policy page), the DSCP In values are
rewritten with the
DSCP Out values. Set the DSCP Out values as
required.
