Dell PowerEdge C6400 - Back View of Enclosure

Item Indicator or button Icon Description
NOTE: If the sled stops
responding during POST,
press and hold the
system ID button (for
more than ve seconds)
to enter the BIOS
progress mode.
5 power-on indicator or system
state indicator or power button
for sleds 2 and 4
Press the power button to turn
the sled on or o.
The power-on indicator turns
amber when a critical system
event occurs.
NOTE: To gracefully shut
down an ACPI-compliant
operating system, press
the power button.
6 system identication button for
sleds 2 and 4
Press the system ID button:
• To locate a particular sled
within the enclosure.
• To turn the system ID on or
o.
NOTE: If the sled stops
responding during POST,
press and hold the
system ID button (for
more than ve seconds)
to enter the BIOS
progress mode.

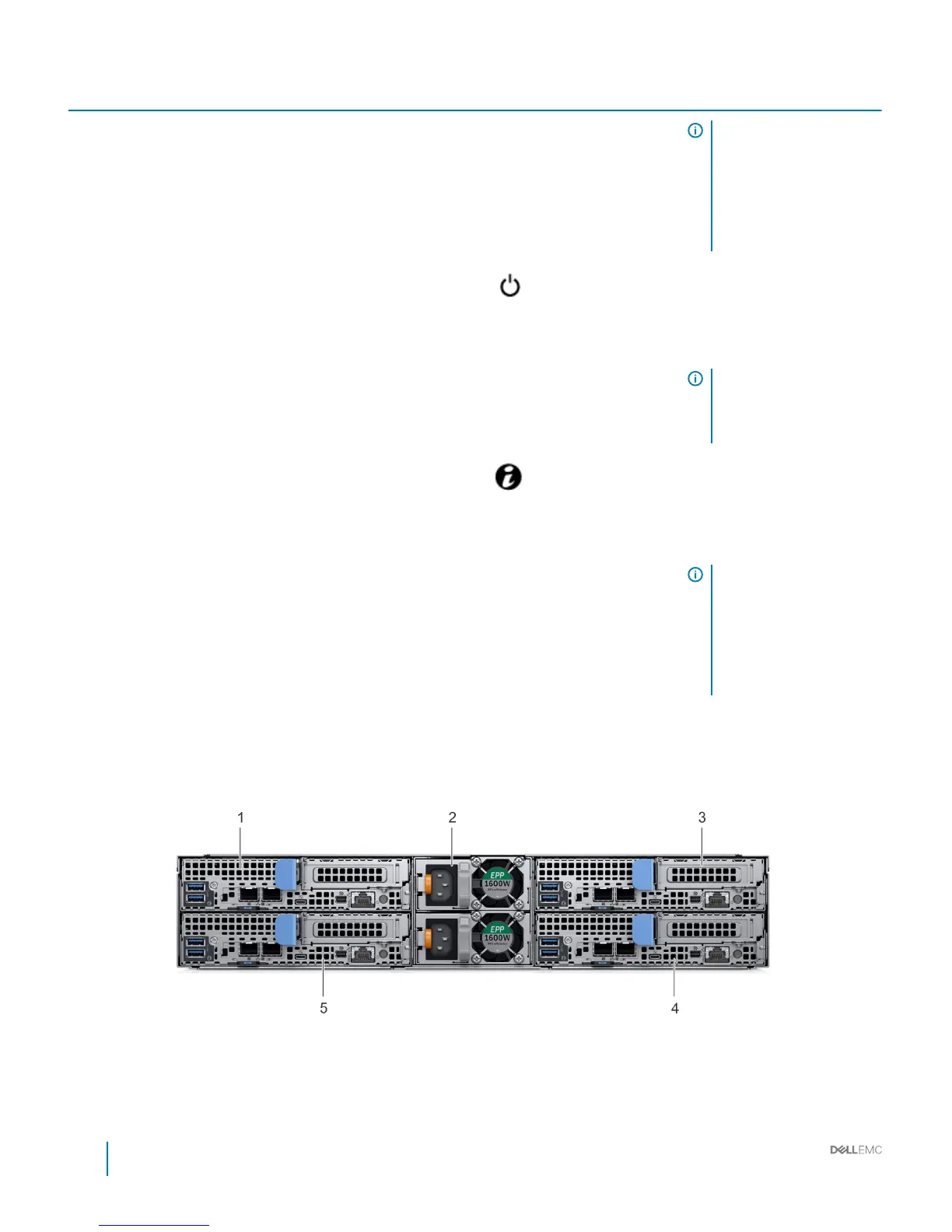

Back view of the
PowerEdge C6400 enclosure with
PowerEdge C6420 sleds
Figure 5. Back view of the enclosure with sleds
1
sled 3 2 power supply unit (2)
3 sled 1 4 sled 2
