Dell PowerEdge C6400 - Backplane Cable Routing (24 x 2.5 inch NVMe)

Backplane cable routing

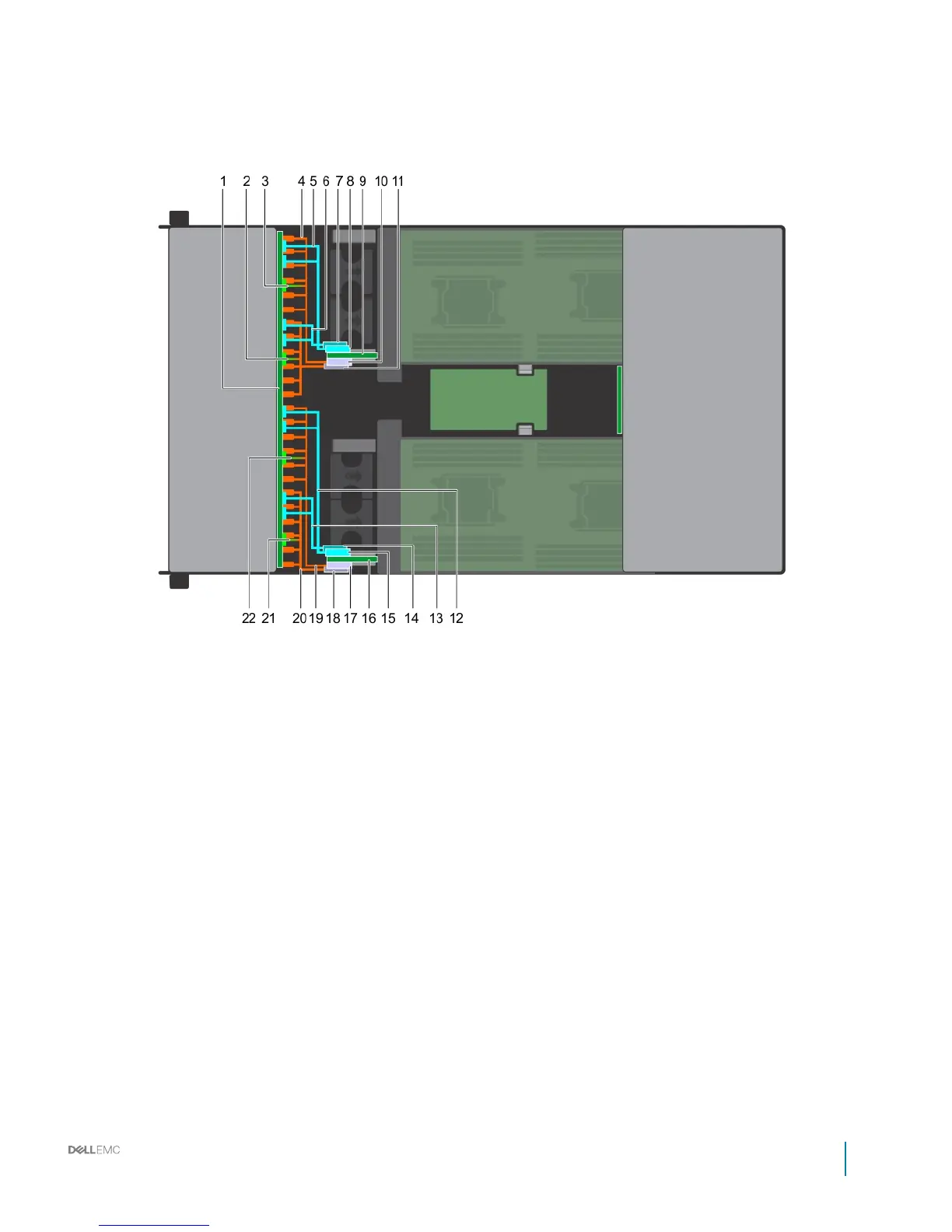

Figure 65. Cabling the 24 x 2.5 inch backplane with NVMe hard drives
1
backplane 2 backplane signal cable 1
3 backplane signal cable 2 4 SATA cable for sled 1
5 NVMe cable for sled 1 6 NVMe cable for sled 2
7 NVMe connector for sled 2 8 NVMe connector for sled 1
9 left linking board 10 linking board connector for sled 1
11 linking board connector for sled 2 12 NVMe cable for sled 3
13 NVMe cable for sled 4 14 NVMe connector for sled 4
15 NVMe connector for sled 3 16 right linking board
17 linking board connector for sled 3 18 linking board connector for sled 4
19 SATA cable for sled 3 20 SATA cable for sled 4
21 backplane signal cable 3 22 backplane signal cable 4
