Dell PowerEdge C6400 - Front View of the Enclosure

Front view of the PowerEdge C6400 enclosure

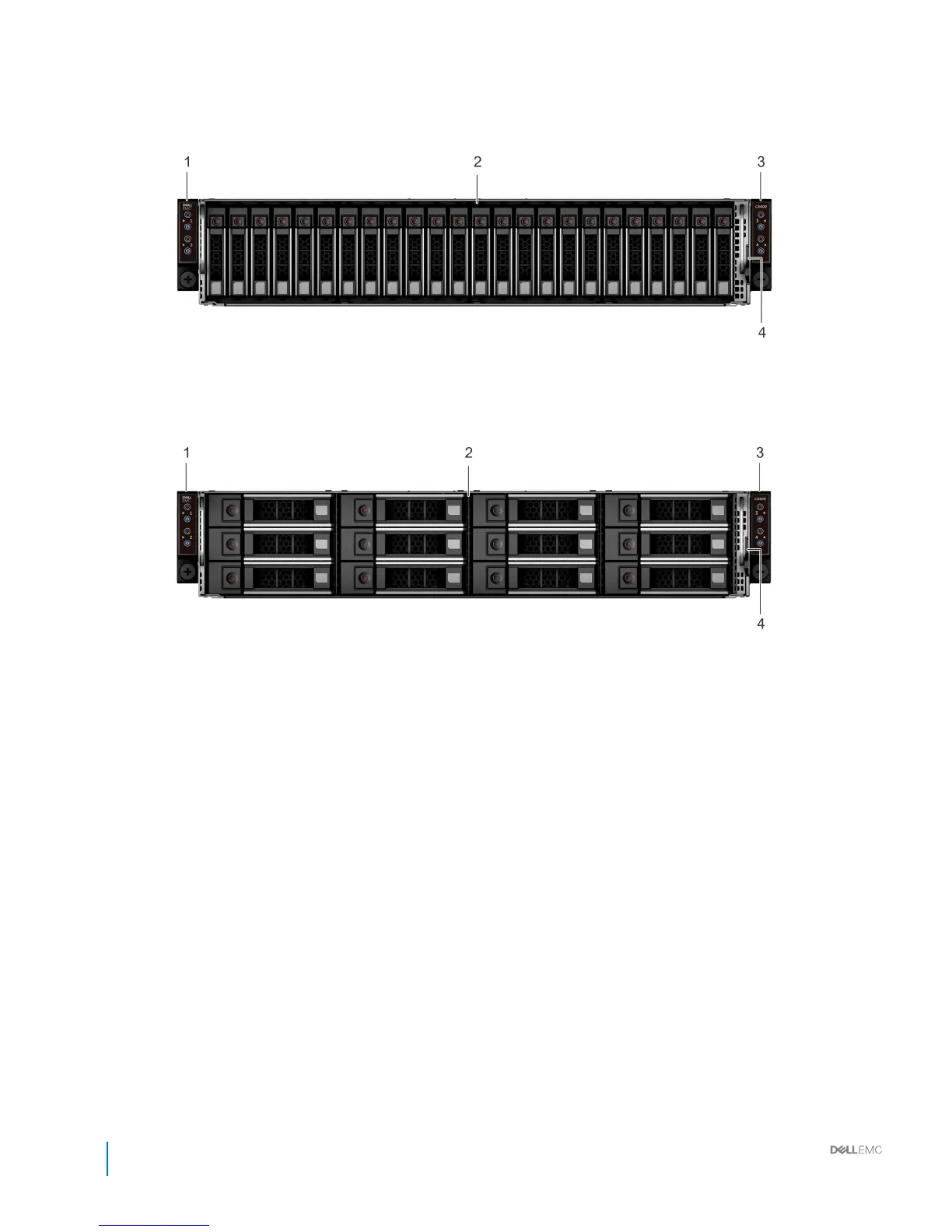

Figure 2. Front view of the enclosure with 24 x 2.5 inch drives
1 left control panel 2 drive bay
3 right control panel 4 EST tag
Figure 3. Front view of the enclosure with 12 x 3.5 inch drives
1
left control panel 2 drive bay
3 right control panel 4 EST tag
