Dell Precision M4600 - Camera Procedures; Removing the Camera

Camera 33
Removing The Camera
1. Follow the procedures in Before Working On Your Computer
2. Remove the battery .
3. Remove the standard display bezel or the touchscreen display bezel .
4. Remove the standard display panel or the touchscreen display panel .

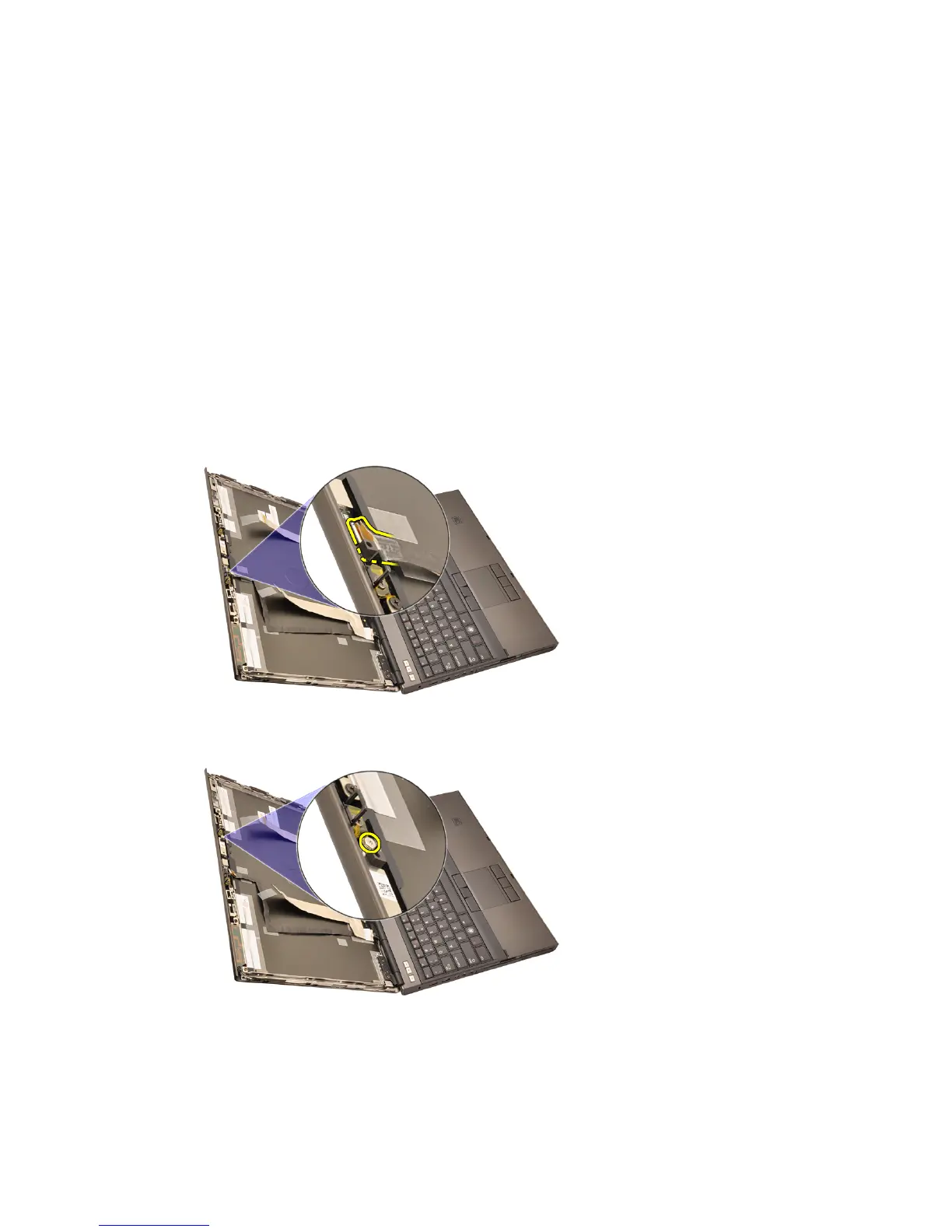

5. Disconnect the camera cable.
6. Loosen the screw securing the camera and microphone module.
7. Lift and remove the camera and microphone module.
105
