Installing The DC-in Jack

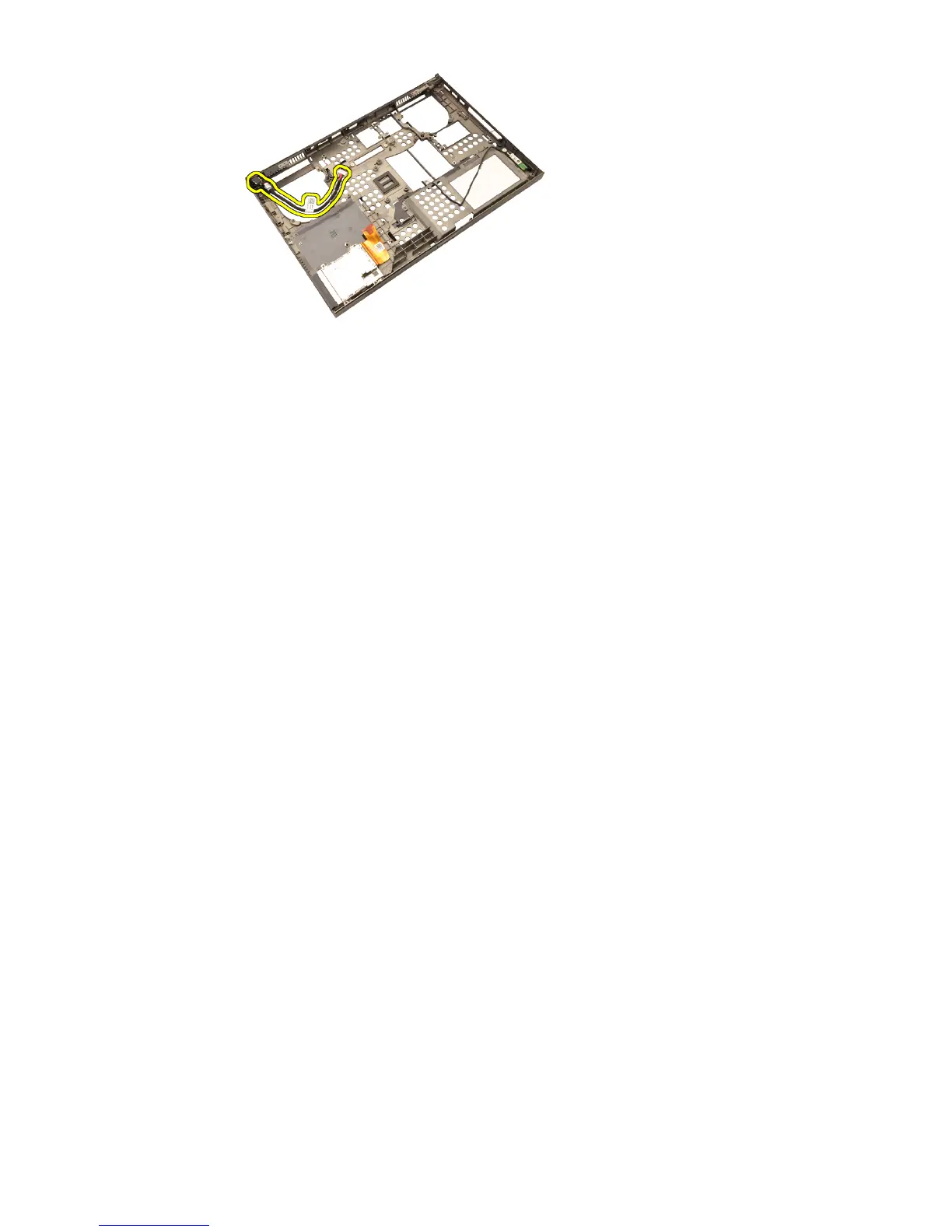

1. Place the DC-in jack in the system.
2. Place the DC-in bracket in the system and tighten the single screw
securing it in place.
3. Connect the DC-in cable to the system board.
4. Install the Input/Output board .
5. Install the
CPU heatsink .
6. Install the palm rest .
7. Install the CPU fan .
8. Install the hard drive .
9. Install the optical drive .
10. Install the keyboard .
11. Install the keyboard trim .
12. Install the base cover .
13. Install the battery .
14. Follow the procedures in After Working Inside Your Computer .
