Installing The Display Assembly

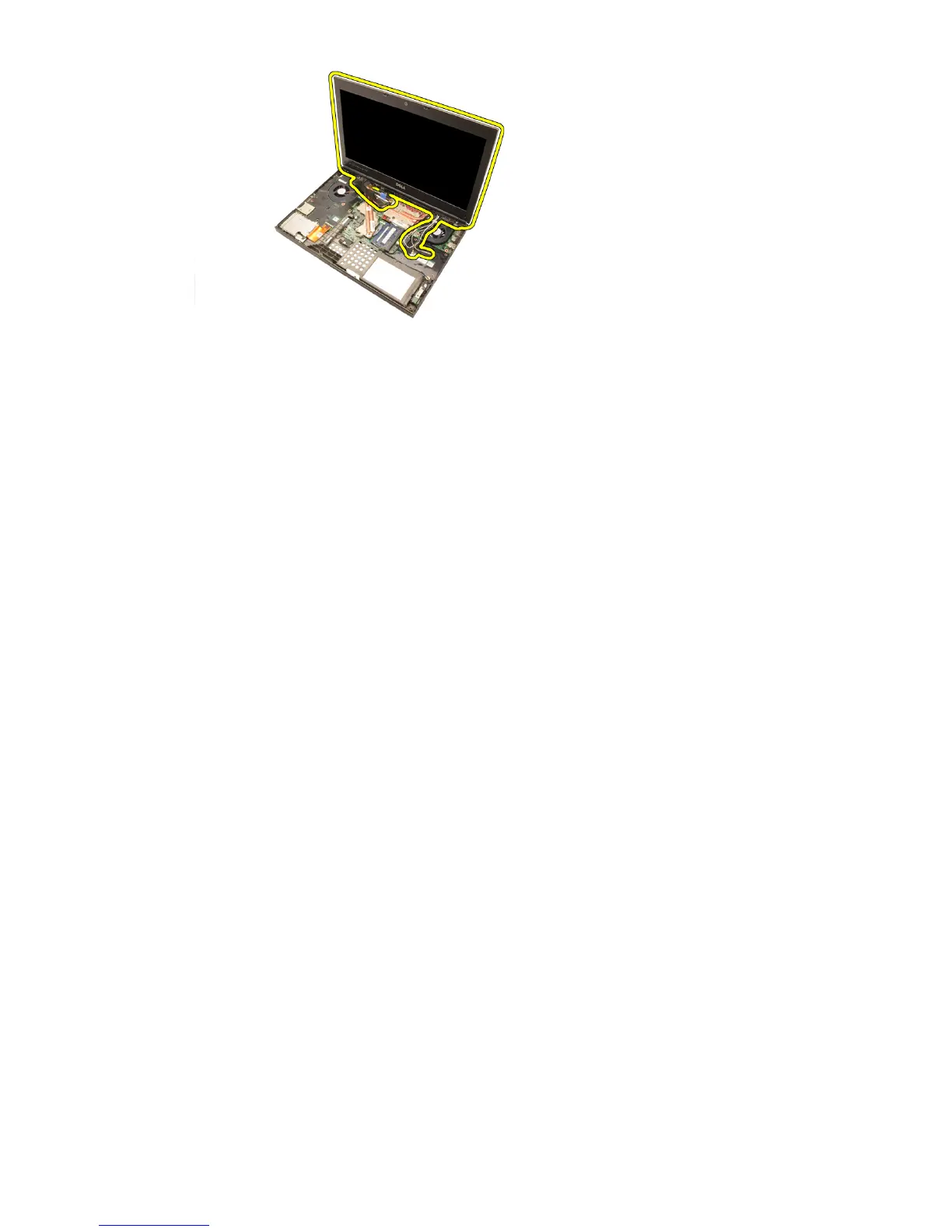

1. Attach the display assembly to the base of the computer.
2. Tighten the screws on the display assembly securing it in place.
3. Tighten the screws on the rear of the system securing the display assembly
in place.
4. Tighten the screws on the bottom of the system securing the display
assembly in place.
5. Connect the camera cable to the system board.
6. Connect the LVDS cable to the system board and tighten the two captive
screws securing the LVDS cable in place.
7. Push the antennas through the opening to the bottom of the computer.
8. Secure the antennas to the routing channels.
9. Connect antennas to installed wireless solutions.
10. Install the
palm rest
.
11. Install the
hard drive
.
12. Install the
optical drive
.
13. Install the
keyboard
.
14. Install the
keyboard trim
.
15. Install the
base cover
.
16. Install the
battery
.
17. Follow the procedures in
After Working Inside Your Computer
.
