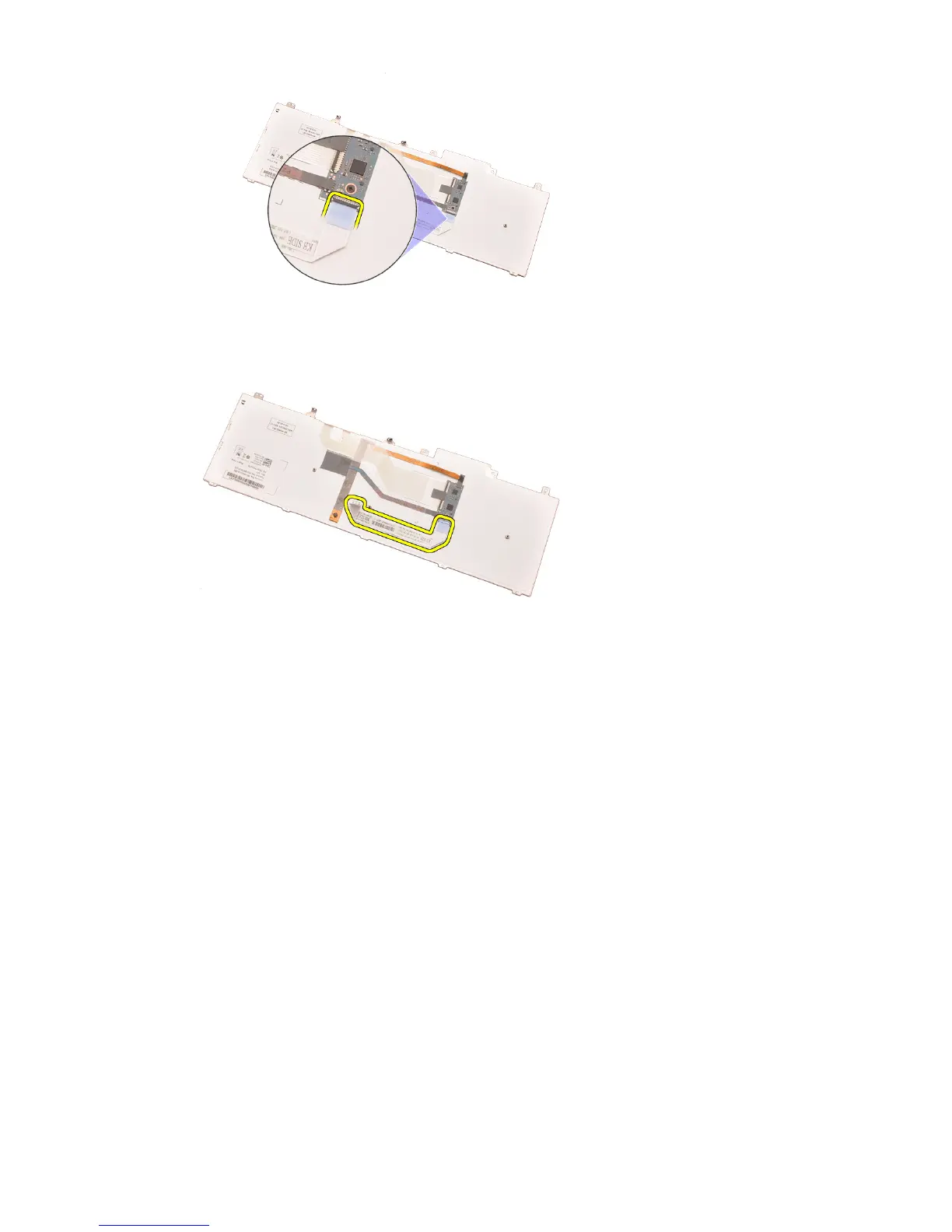

10. Peel the keyboard data cable away from the keyboard and remove.
Installing The Keyboard
1. Connect the keyboard data cable to the back of the keyboard.
2. Replace the adhesive tape to secure the keyboard data cable to the back of
the keyboard.
3. Connect the keyboard data cable to the system board.
4. Place the keyboard on the palm rest and align the screw holes.
5. Tighten the keyboard screws.
6. Install the
keyboard Trim
.
7. Install the
battery
.
8. Follow the procedures in
After Working Inside Your Computer
.
29
