Dell Precision M4600 - Display Assembly Procedures; Removing the Display Assembly

Display Assembly 27
Removing The Display Assembly
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the base cover .
4. Remove the keyboard trim .
5. Remove the keyboard .
6. Remove the optical drive .
7. Remove the hard drive
8. Remove the palm rest .

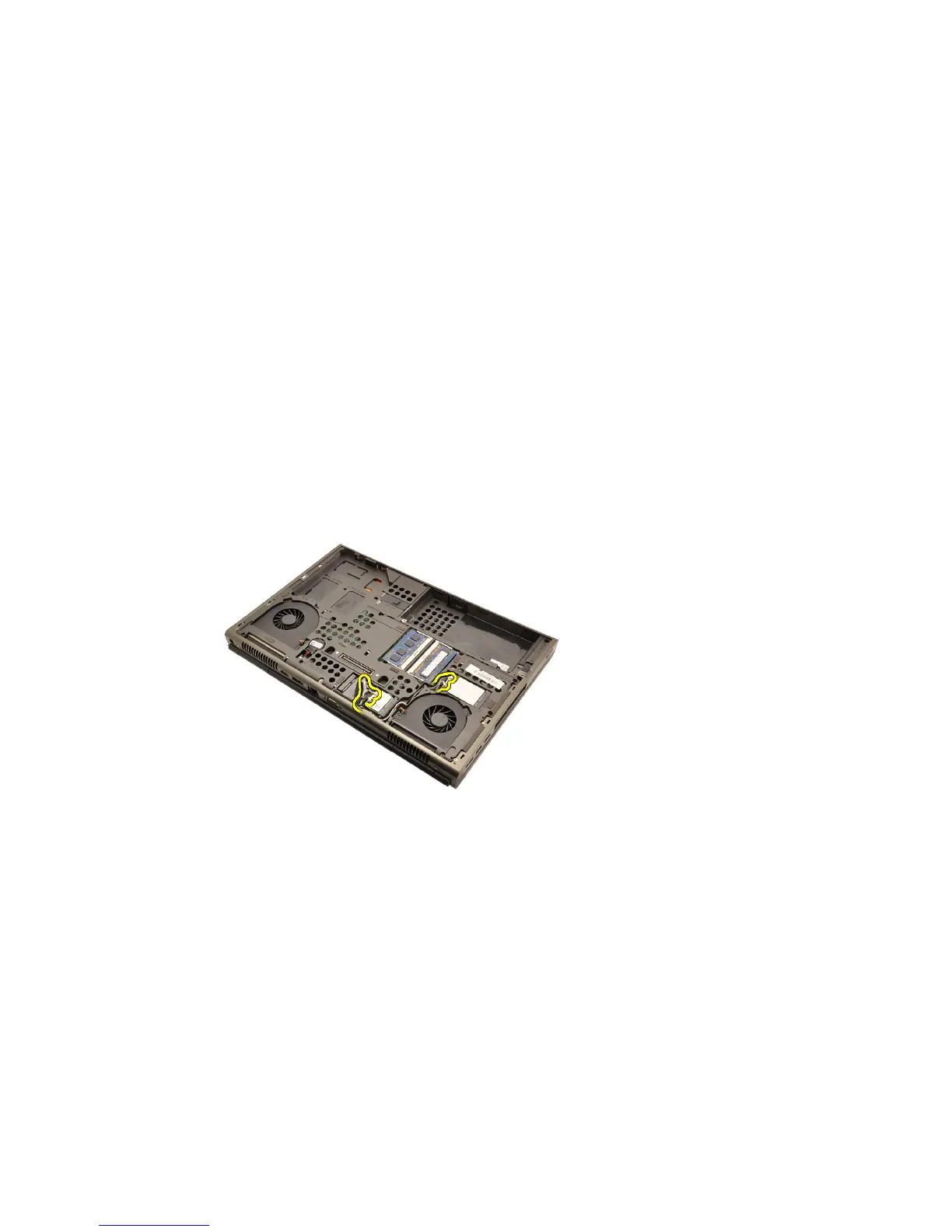

9. Disconnect any antennas connected to installed wireless solutions.
10. Remove the antennas from the routing channels.
75
