Dell Precision M4600 - CPU and Heatsink Procedures; Removing the CPU Heatsink

CPU and Heatsink 20
Removing The CPU Heatsink
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the base cover .
4. Remove the keyboard trim .
5. Remove the keyboard .
6. Remove the optical disc drive .
7. Remove the hard drive .
8. Remove the CPU fan .
9. Remove the palm rest .

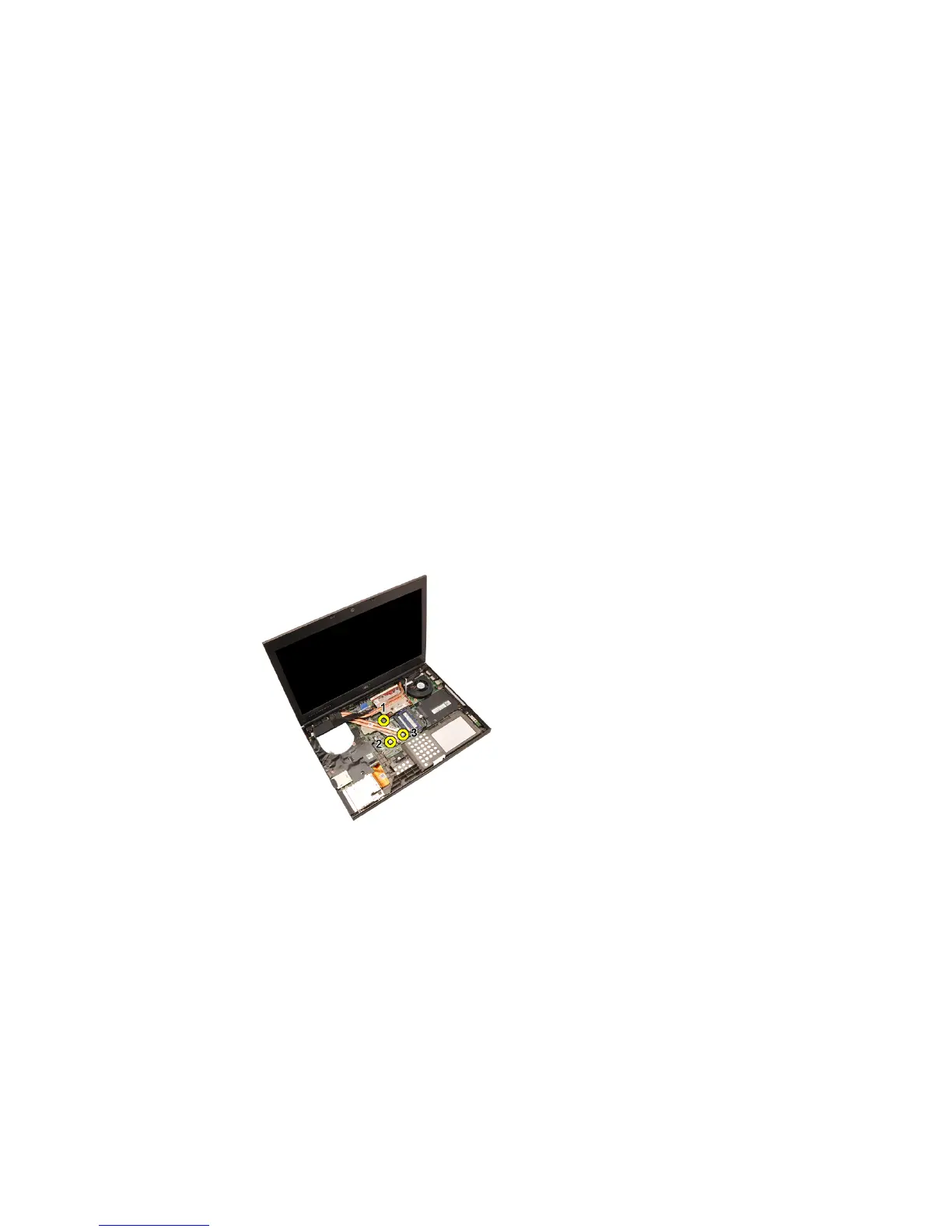

10. Loosen the captive screws (1 > 2 > 3 ) on the heatsink.
11. Lift up the CPU heatsink and remove from the system.
