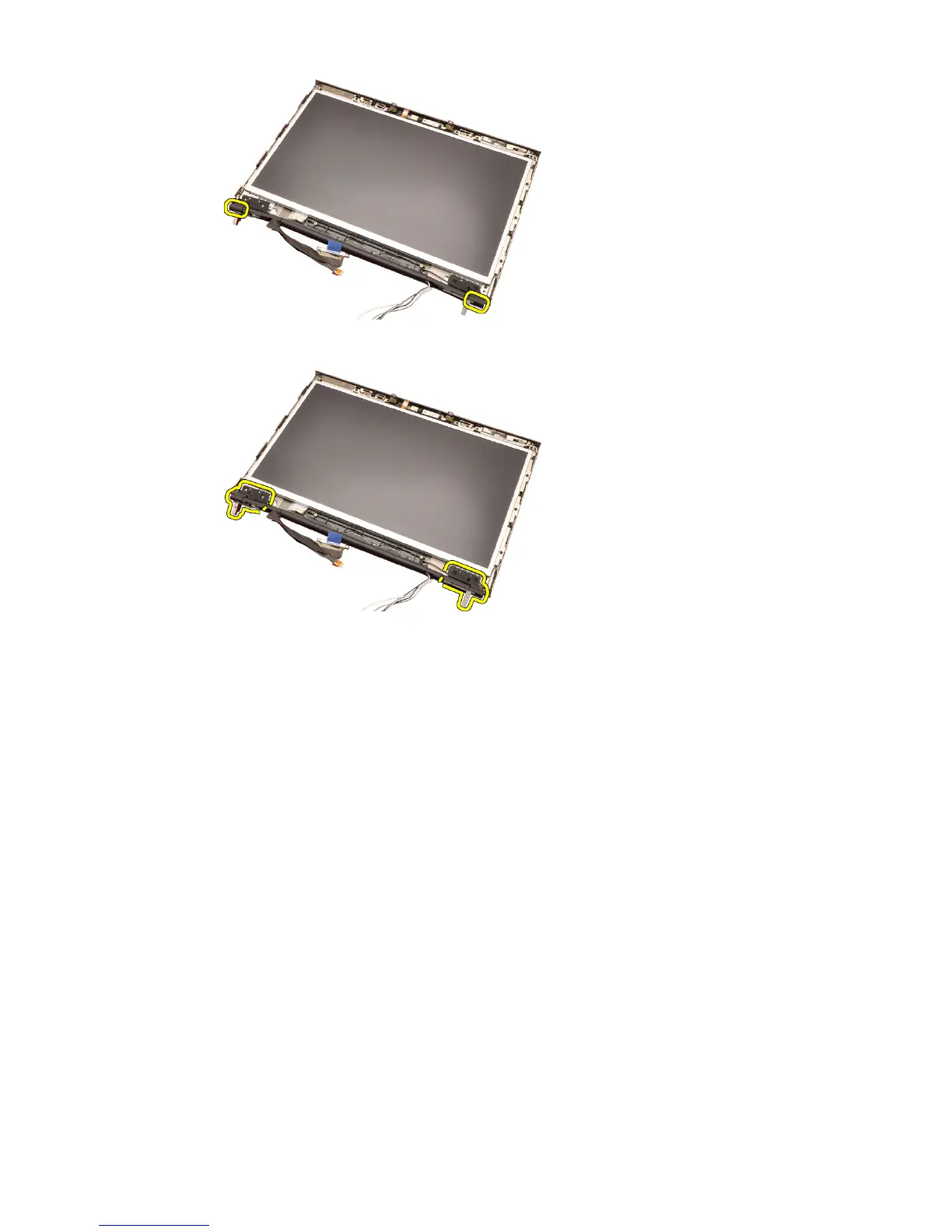

14. Remove the display hinges.

15. Release the display hinge towers from the cables and remove the hinge

towers.

108
