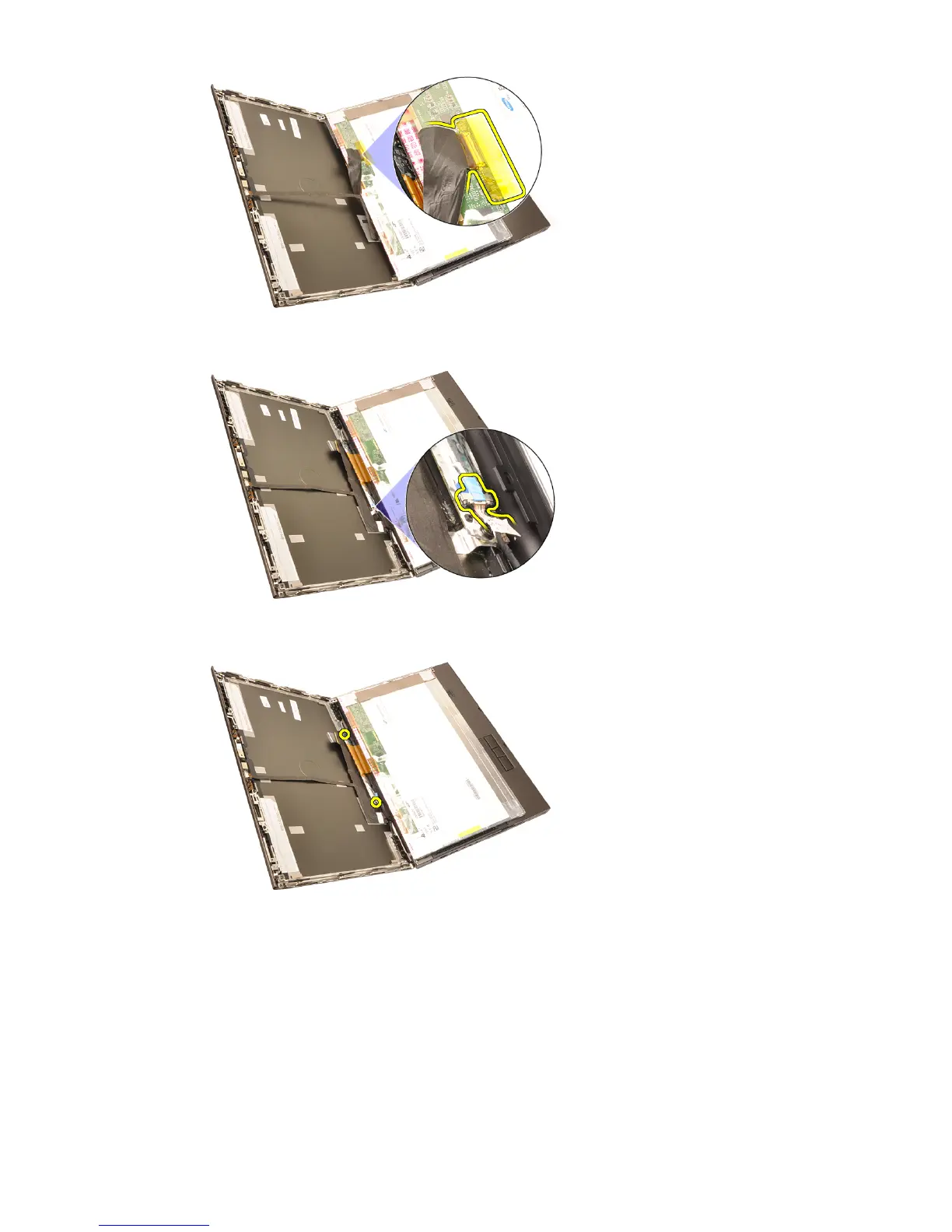

8. Disconnect the digitizer cable.

9. Remove the screws securing the digitizer in place.

10. Remove the touchscreen display panel.
