Dell S2830dn

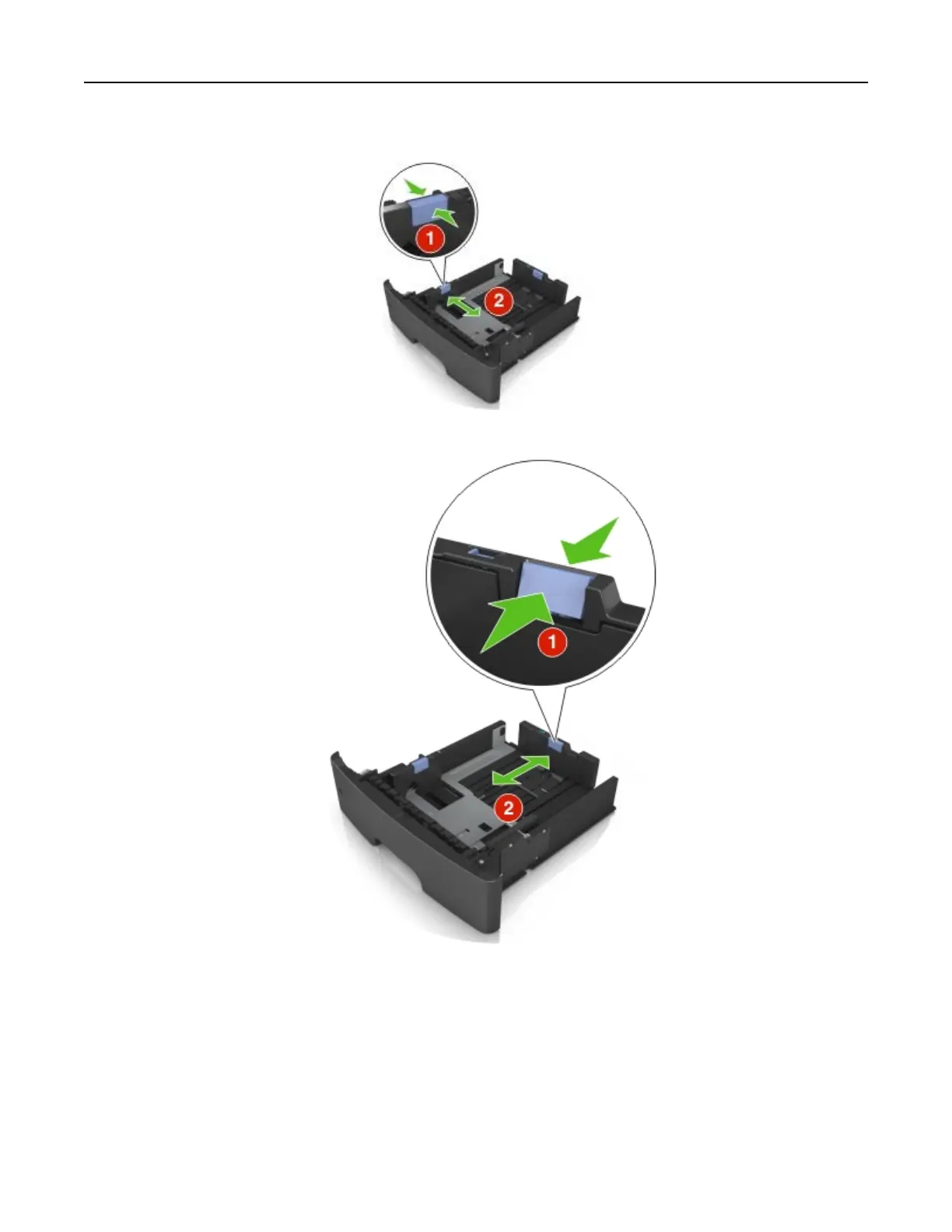

2 Squeeze and then slide the width guide tab to the correct position for the size of the paper you are loading.
3 Squeeze and then slide the length guide tab to the correct position for the size of the paper you are loading.
Notes:
• For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to
accommodate their length.
• If you are loading A6-size paper in the standard tray, then squeeze and then slide the length guide
tab toward the center of the tray to the A6‑size position.
• Make sure the width and length guides are aligned with the paper size indicators on the bottom of
the tray.
Loading paper and specialty media 25
