Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

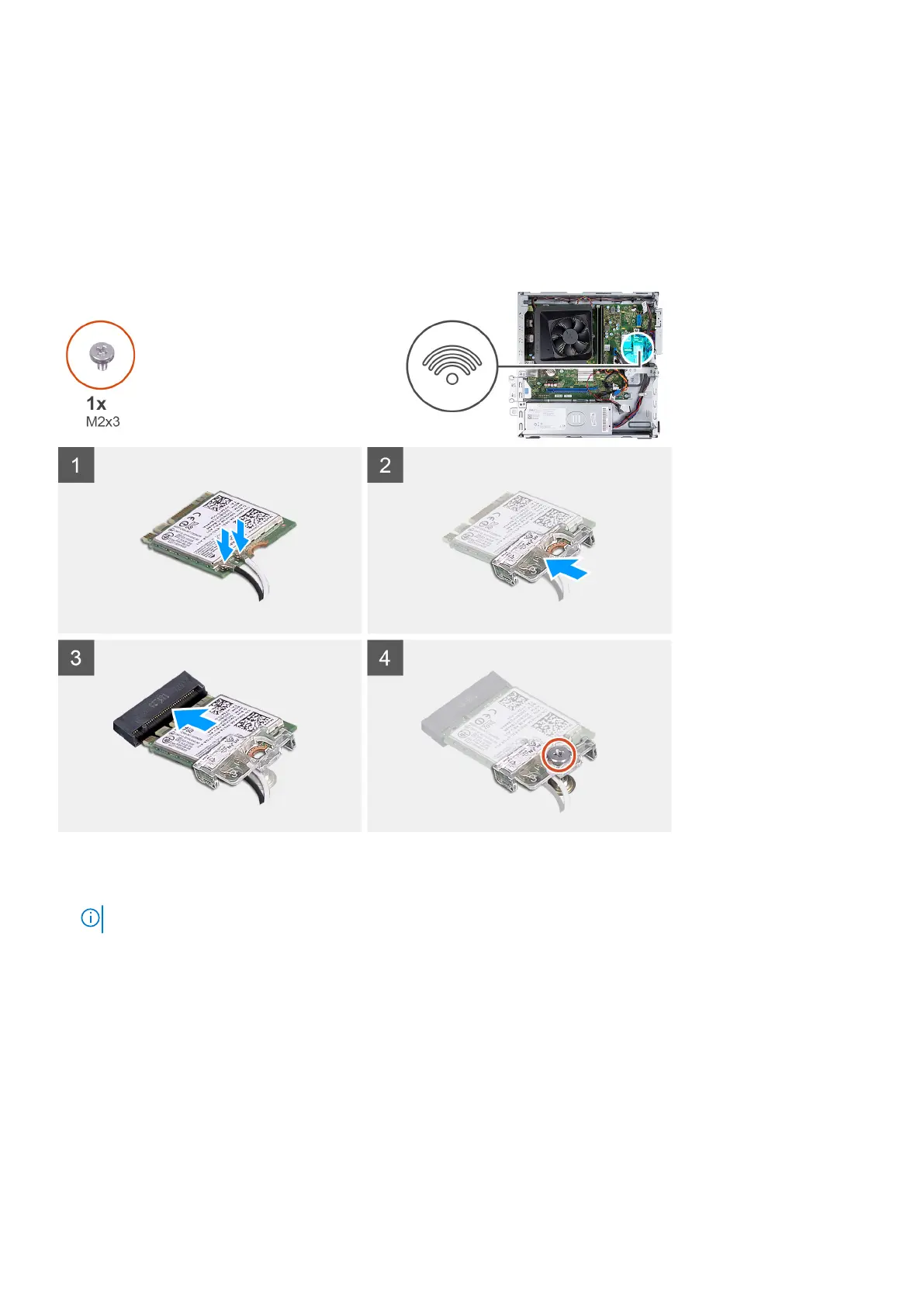

The following image(s) indicate the location of the wireless card and provides a visual representation of the installation
procedure.
Steps
1. Connect the antenna cables to the wireless card.
NOTE: Start from the edge of the bezel with the smaller securing tabs and snap them into place.
2. Slide and place the wireless-card bracket on the wireless card.
3. Align the notch on the wireless card with the tab on the wireless-card slot.
4. Slide the wireless card at an angle into the wireless-card slot.
5. Replace the screw (M2x3) that secures the wireless card to the system board.
Next steps
1. Install the HDD and ODD cage.
2. Install the 3.5-inch hard drive.
3. Install the front cover.
4. Install the left-side cover.
5. Follow the procedure in After working inside your computer.
