Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task

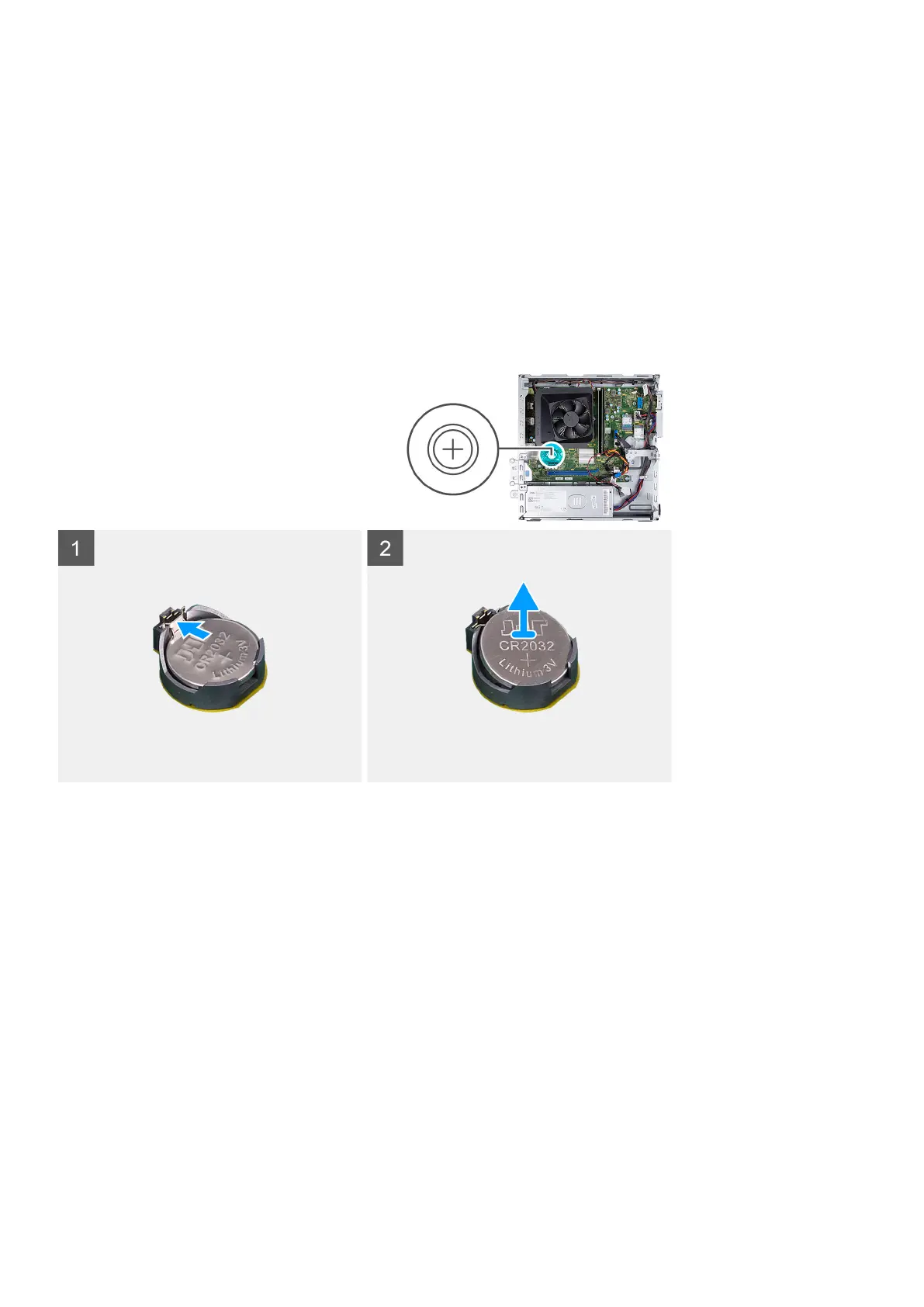

The following image(s) indicate the location of the coin-cell battery and provides a visual representation of the removal
procedure.
Steps
1. Place the computer on its side with the left side facing up.
2. Push the coin-cell battery securing-clip on the coin-cell battery socket to release the coin-cell battery.
3. Push the coin-cell battery securing-clip on the coin-cell battery socket to release the coin-cell battery.
Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the coin-cell battery and provides a visual representation of the installation
procedure.
Removing and installing components
33
