4. Remove the three screws (#6-32) that secure the power-supply unit to the chassis.
5. Slide and lift the power-supply unit off the chassis.
Installing the power supply
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

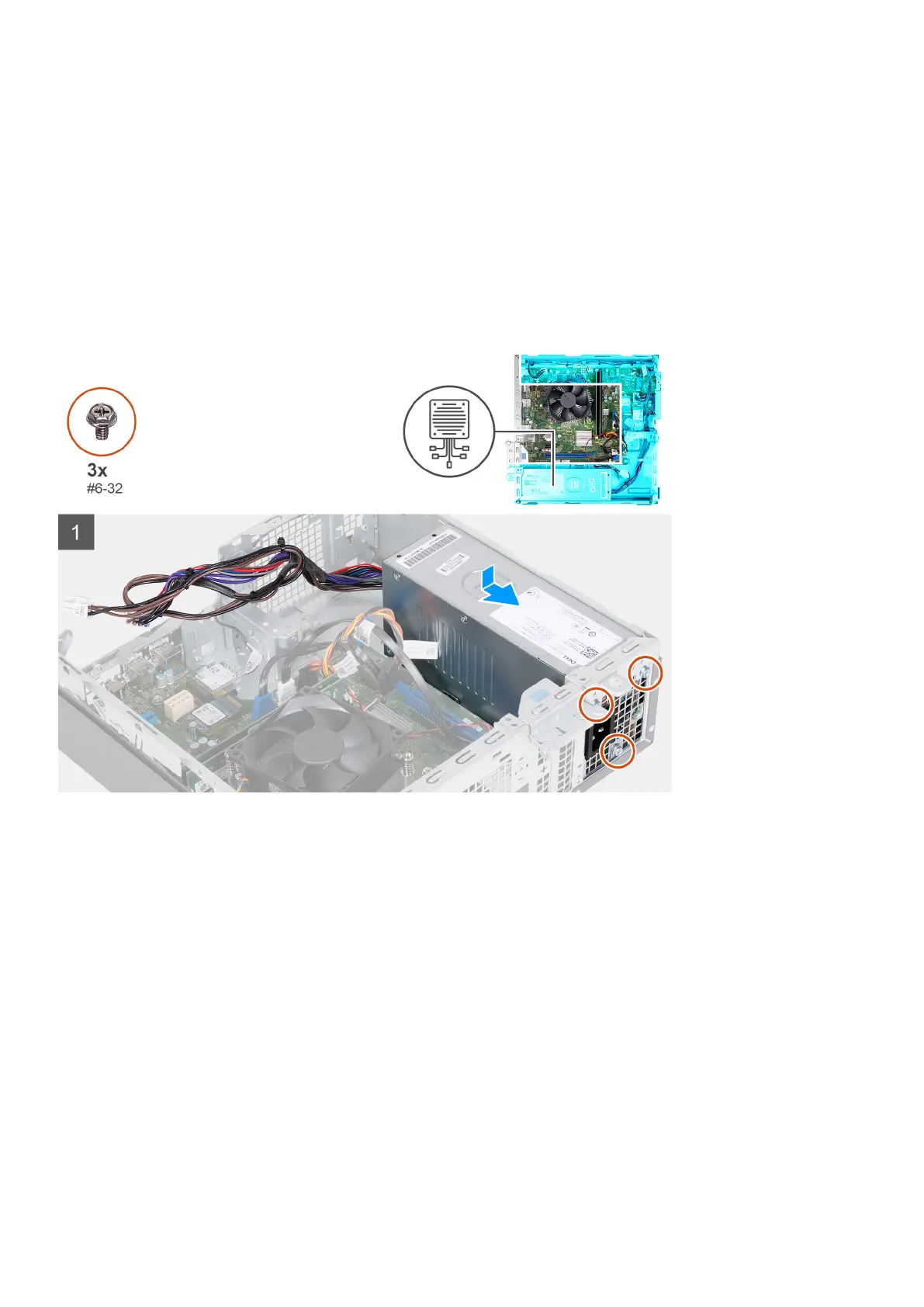

The following image(s) indicate the location of the power supply and provides a visual representation of the installation
procedure.
40 Removing and installing components
