Steps
1. Disconnect the fan and heat-sink assembly cable from the system board.
2. In a reverse sequential order (4>3>2>1) loosen the four captive screws that secure the processor fan and heat-sink
assembly to the system board.
3. Lift the processor fan and heat-sink assembly from the system board.
Installing the fan and heat-sink assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

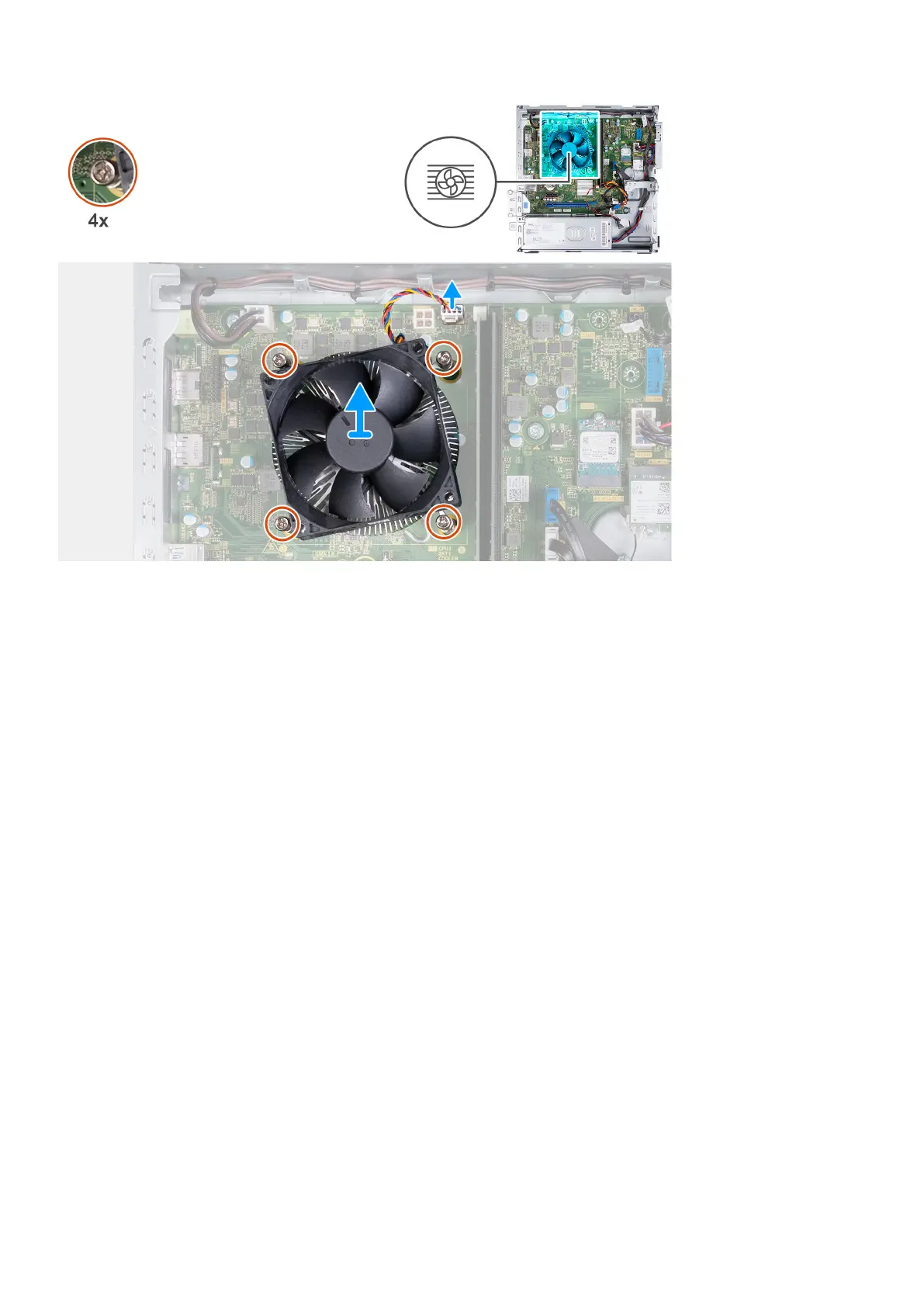

The following image(s) indicate the location of the fan and heat-sink assembly and provides a visual representation of the
installation procedure.
