Steps
1. Press the release lever down and then push it away from the processor to release it from the securing tab.
2. Extend the release lever completely and open the processor cover.
3. Gently lift the processor from the processor socket.
Installing the processor
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

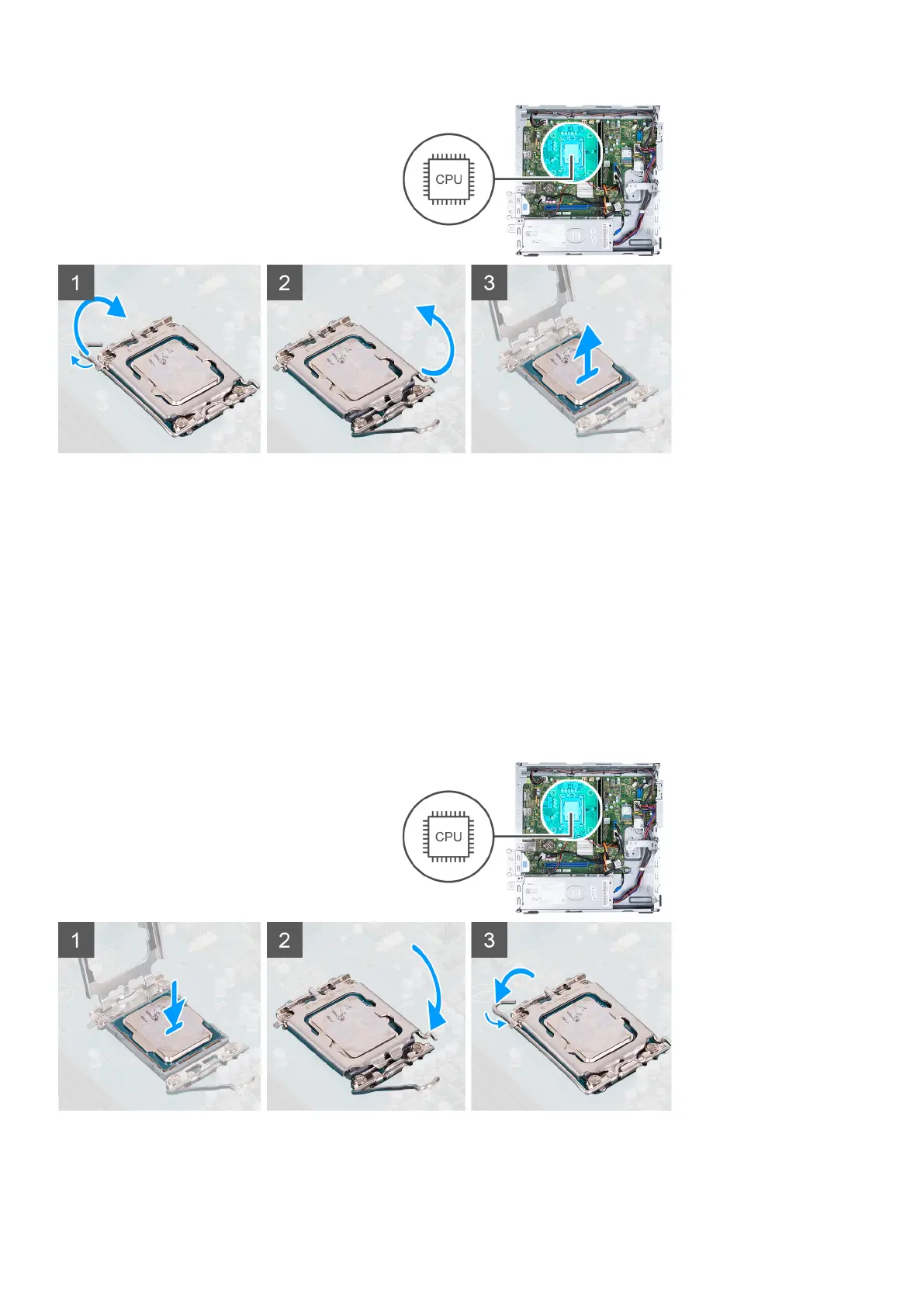

The following image(s) indicate the location of the processor and provides a visual representation of the installation procedure.
Steps
1. Ensure that the release lever and the processor cover are fully extended in the open position.
46
Removing and installing components
