Steps

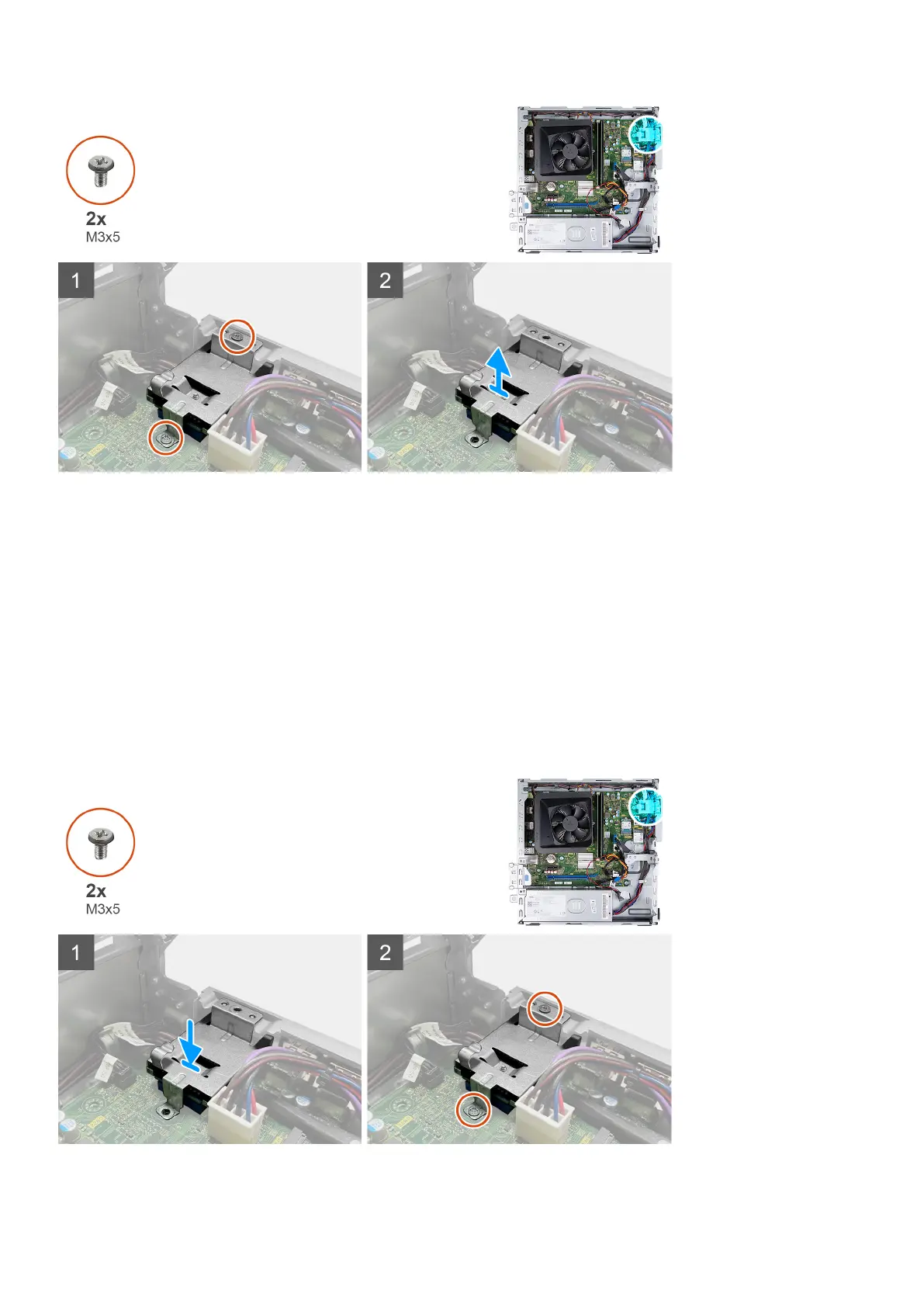

1. Remove the two screws (M3x5) that secure the media-card reader bracket to the system board and the chassis.
2. Slide and lift the media-card reader and its bracket off the system board.
Installing the media-card reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the media-card reader and provides a visual representation of the installation
procedure.
Removing and installing components
37
