Steps

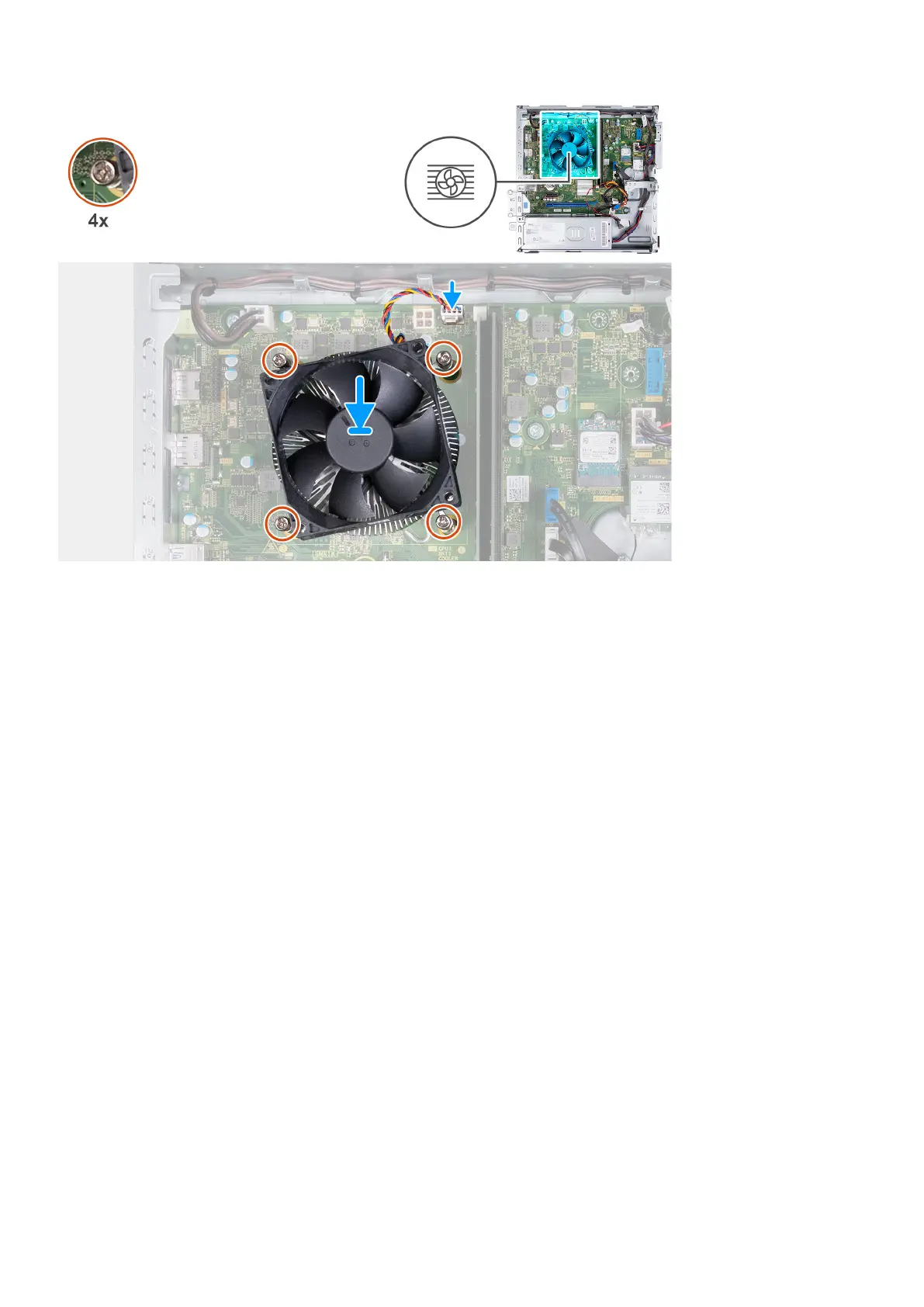

1. Gently place the processor fan and heat-sink assembly on the processor.
2. Align the screw holes on the processor fan and heat-sink assembly with the screw holes on the system board.
3. In sequential order (1>2>3>4) tighten the four captive screws that secure the processor fan and heat-sink assembly to the
system board.
4. Connect the fan cable to the system board.
Next steps
1. Install the fan shroud.
2. Install the left-side cover.
3. Follow the procedure in After working inside your computer.
Processor
Removing the processor
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
3. Remove the fan shroud.
4. Remove the fan and heat-sink assembly.
About this task
The following image(s) indicate the location of the processor and provides a visual representation of the removal procedure.
Removing and installing components
45
