Installing the battery
1 Insert the battery into the slot on the computer.
2 Connect the battery cable to the connector on the system board.
3 Connect the hard disk drive cable to the connector on the system board and close the latch.
4 Replace the four M2.0 x 3 screws to secure the battery to the system.
5 Install the base cover.
6 Follow the procedure in After working inside your computer.
Speaker
Removing the speaker
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery

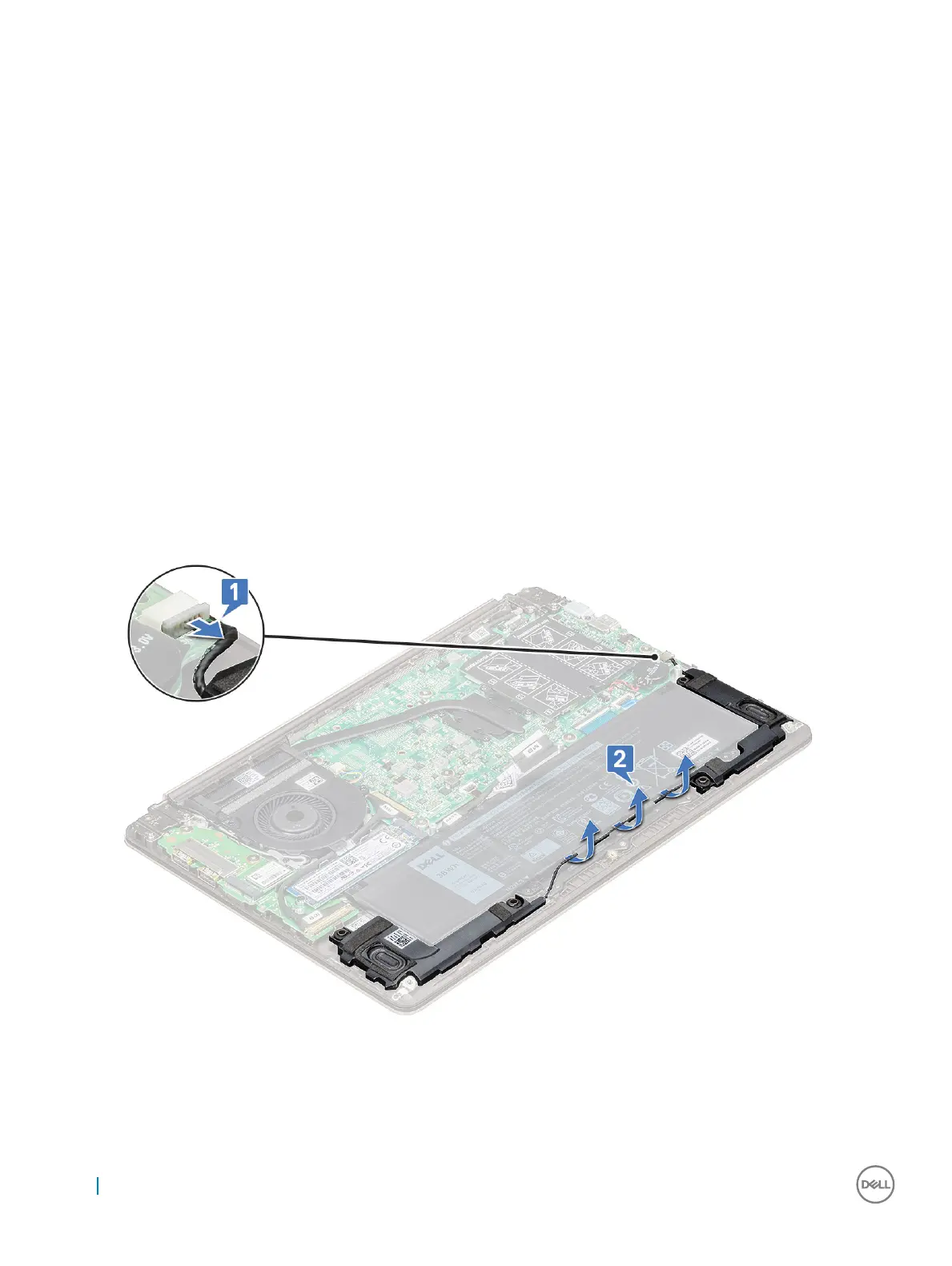

3 To remove the speaker:
a Disconnect the speaker cable [1].
b Unroute the cable from routing channel [2].
4 Lift the speakers, along with the speaker cable, and remove it away from the back cover.
