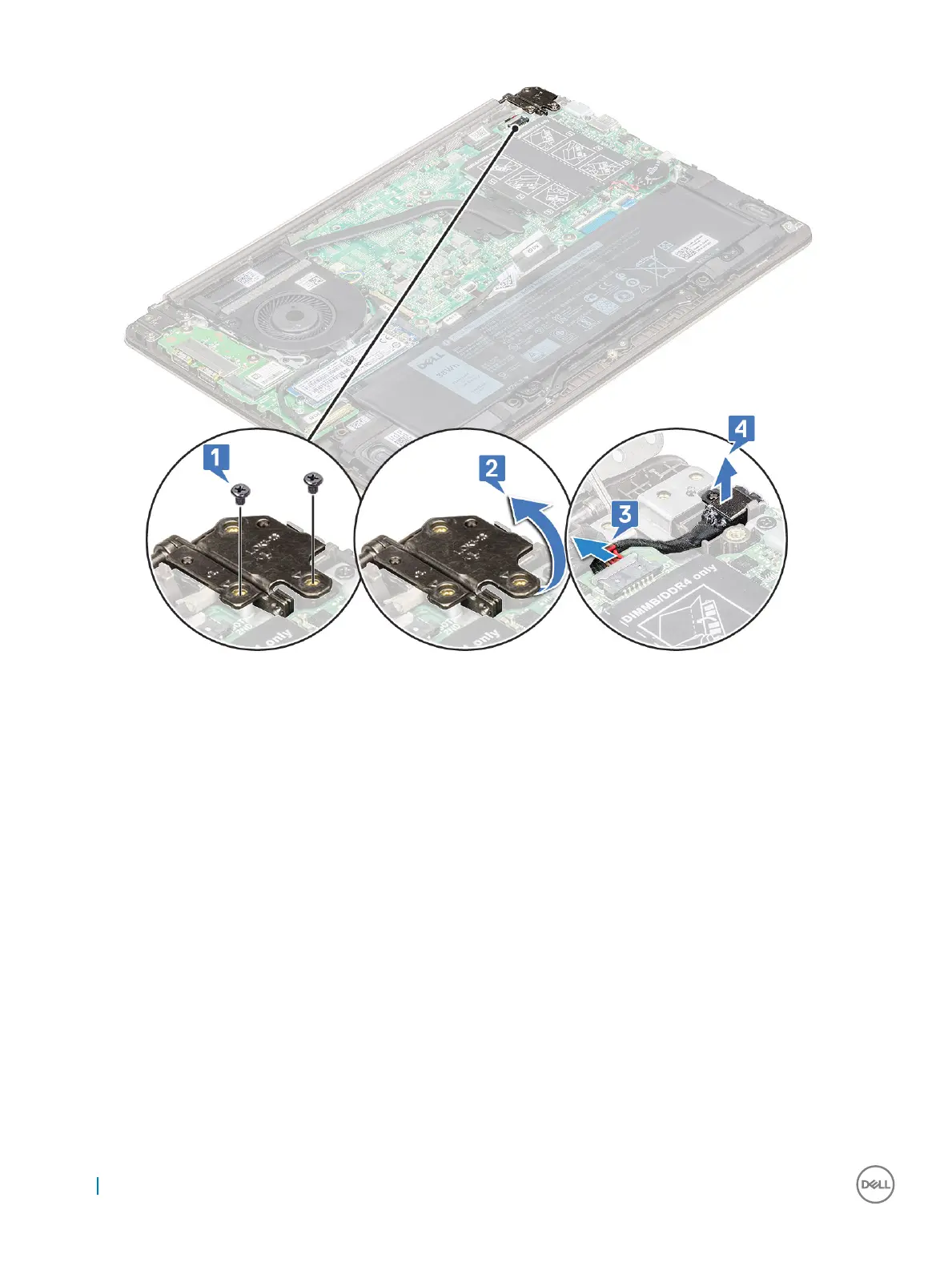

d Disconnect the DC-in from the system [4].
Installing the DC-in
1 Place and connect the DC-in to its slot in the system.
2 Connect the power-adapter port cable to the connector in the system board.
3 Place the right display hinge and replace the 3 screws to secure the hinge to the system.
4 Install the:
a display assembly
b WLAN card
c base cover
5 Follow the procedure in After working inside your computer.
Palm rest
Removing and installing palmrest
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
34
Removing and installing components
