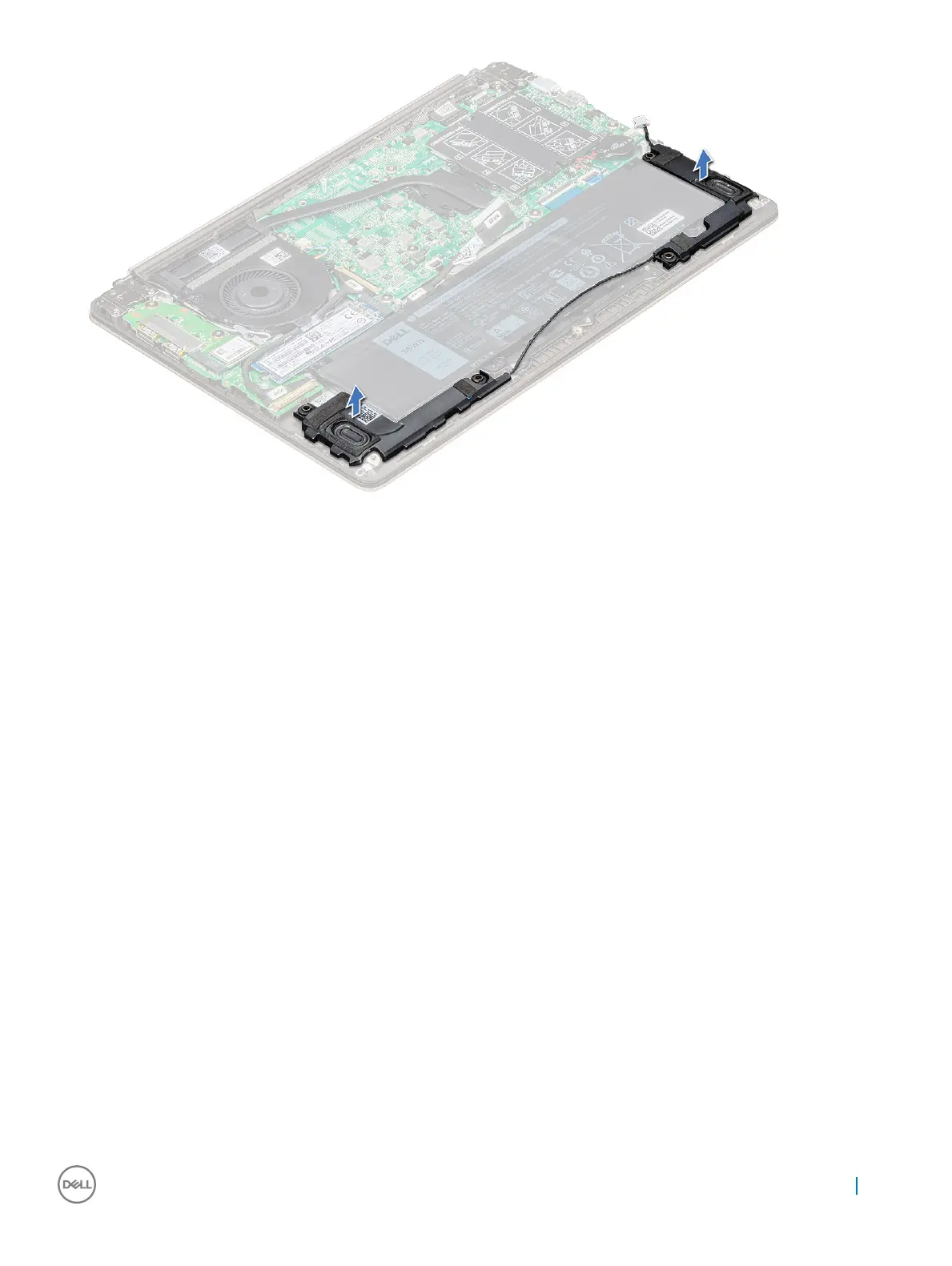

Installing the speaker
1 Align the speakers along the slots on the system.
2 Route the speaker cable through the routing tabs on the system.
3 Connect the speaker cable to the system board.
4 Install the:
a battery
b base cover
5 Follow the procedure in After working inside your computer.
Coin cell battery
Removing the coin cell battery
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 To remove the coin cell battery:
a Disconnect the coin cell battery cable from the connector on the system board [1].
b Pry the coin cell battery to release from the adhesive and lift it away from the system board [2].
Removing and installing components
13
