3 Connect the eDP cable to the connector in the system board.
4 Route the WLAN cable.
5 Install the:
a WLAN card
b base cover
6 Follow the procedure in After working inside your computer.
Display bezel
Removing display bezel
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b WLAN card
c display assembly
3 To remove the display bezel:

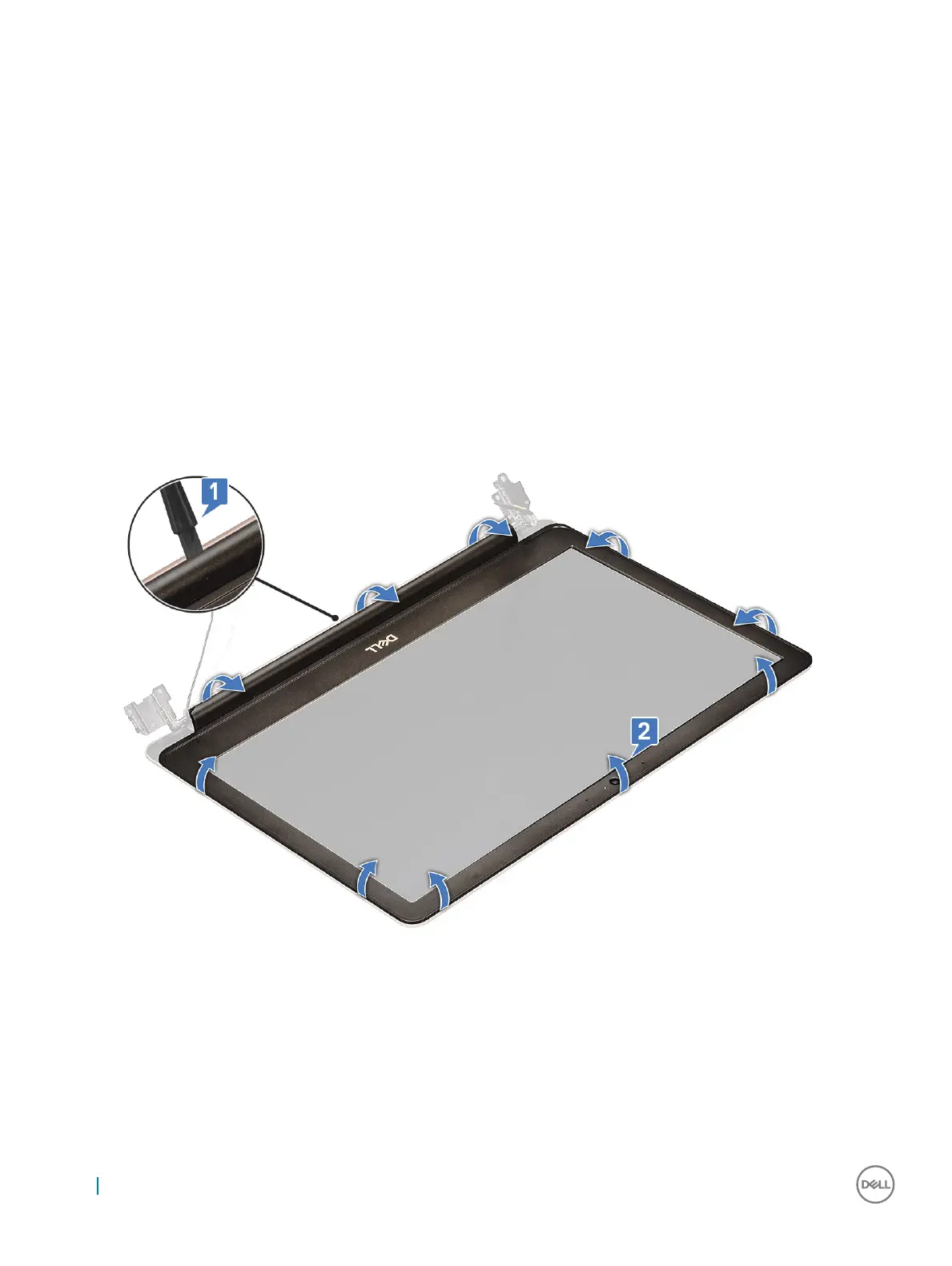

a Using a plastic scribe, pry the outer edges to release the display bezel from the display assembly [1, 2].
b Remove the display bezel from display assembly.
28
Removing and installing components
